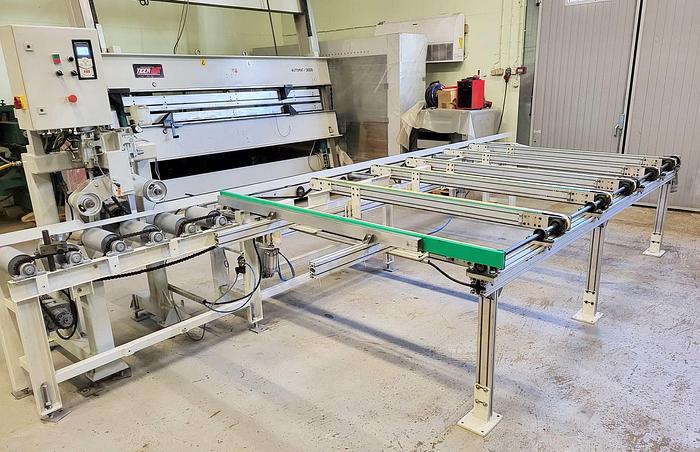

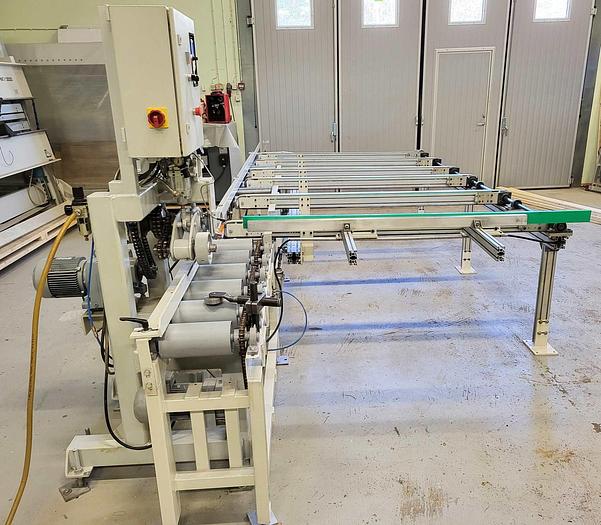

PINOMATIC Feeder with full mechanization for planing line.

PINOMATIC Feeder with full mechanization for planing line.

year 2001

rebuild 2024 with new electric control box

speed 24-52m/min

for work pieces:

Max lenght 5.5-6,0m

width max 25-30cm

height max 10-12cm

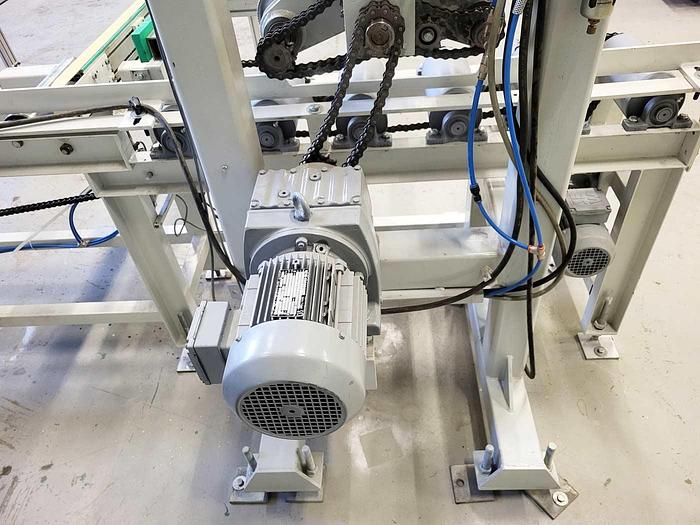

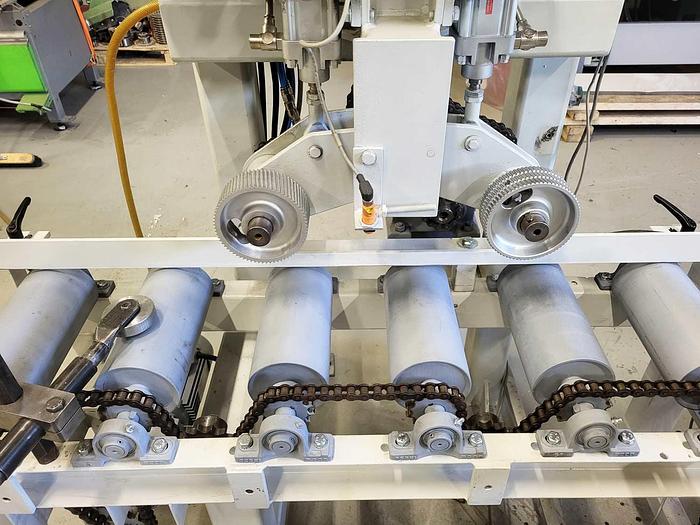

Pos 1 Pinomatic feeder

speed 34-48m/min

roller distance 300mm

shortest workpiece 500mm

with bottom and top feed rollers

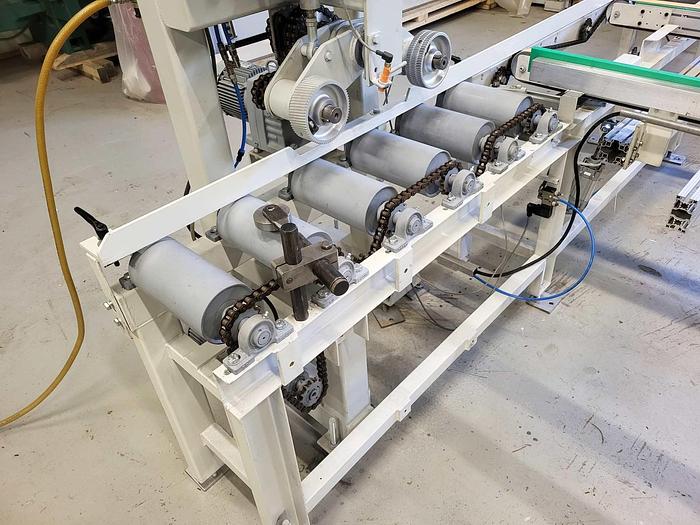

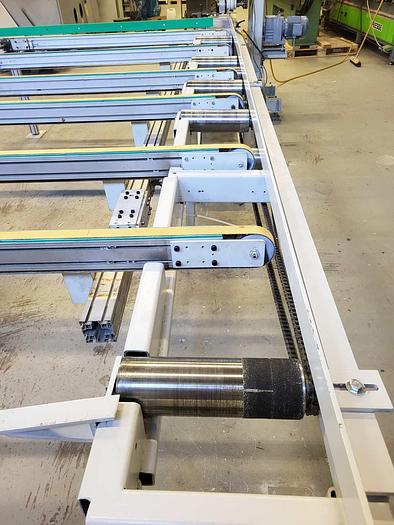

Pos 2 motorised roller conveyer

total lenght 3700mm

working width 350mm

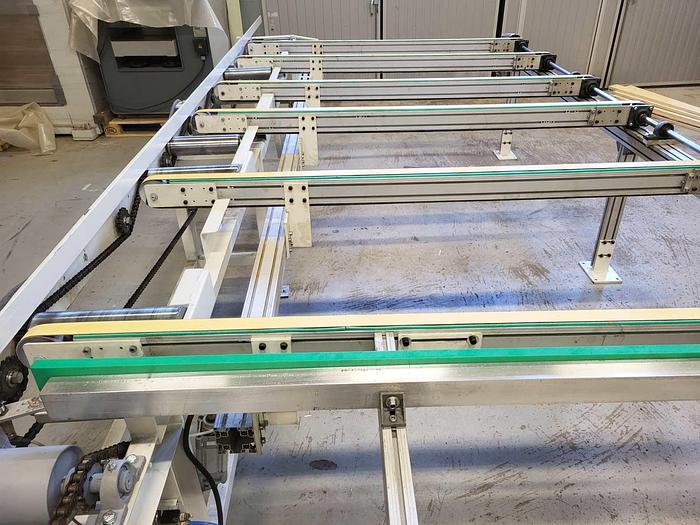

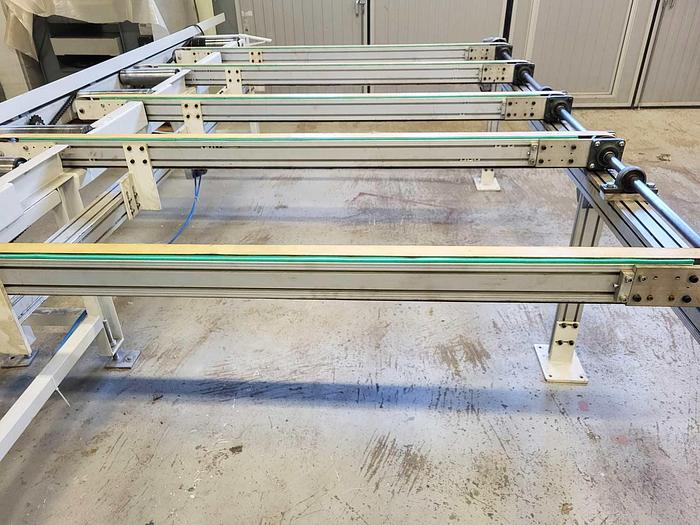

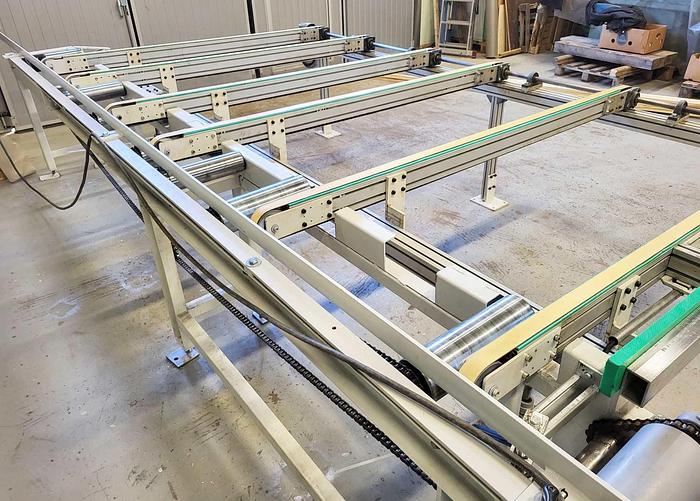

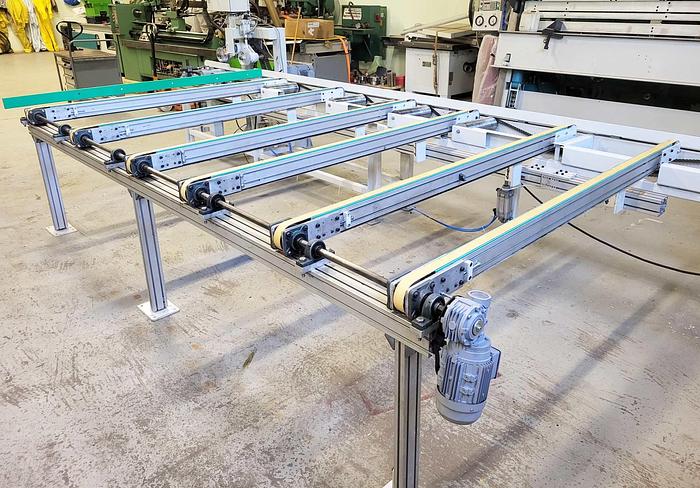

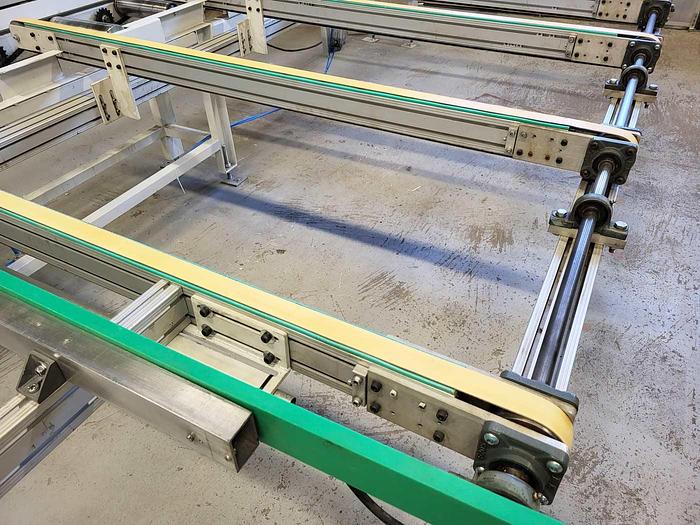

Pos 3 Motorised belt conveyor for cross transfer

total lenght 3700mm

width 2100mm

with 6 arms belt conveyor transport

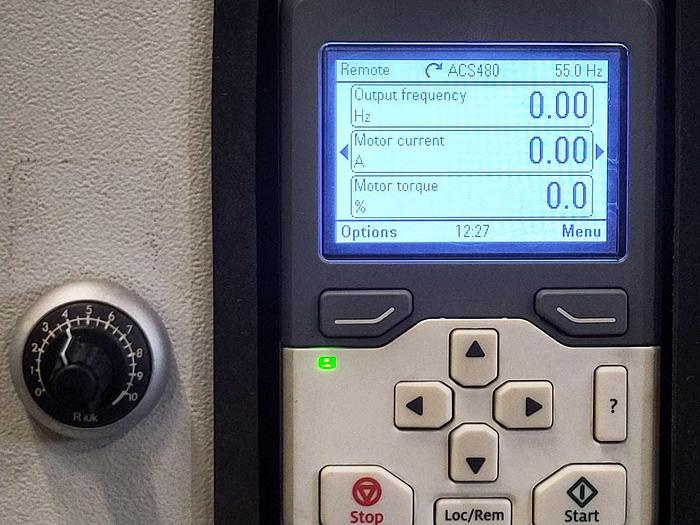

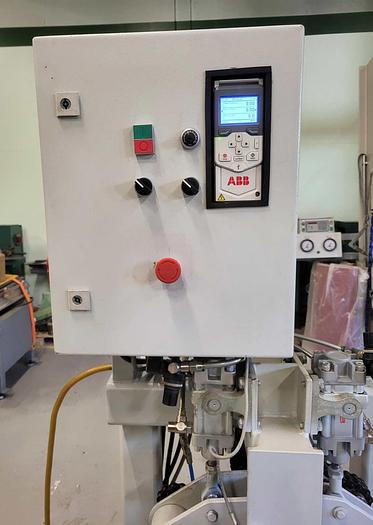

Pos 4 new control system

the Pinomatic feeder will be controlled by a frequency converter

pos 4 new control system
