1998 Leadermac LMC Compact 623 C Plane automats

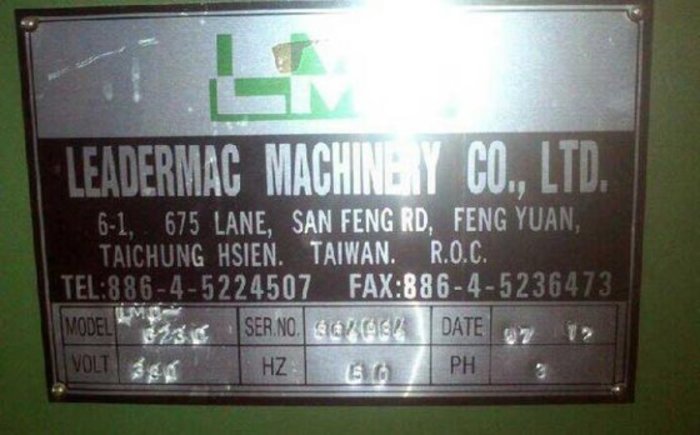

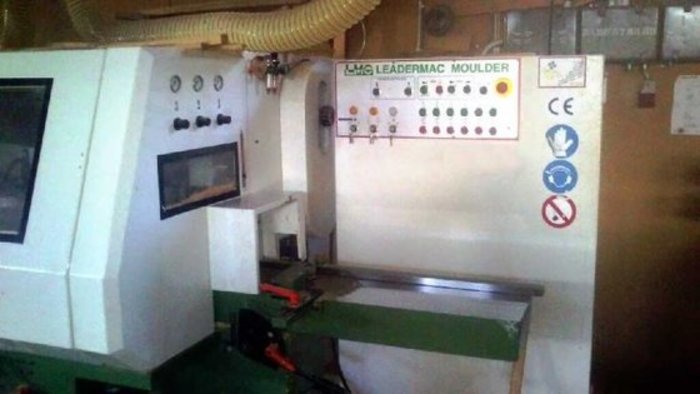

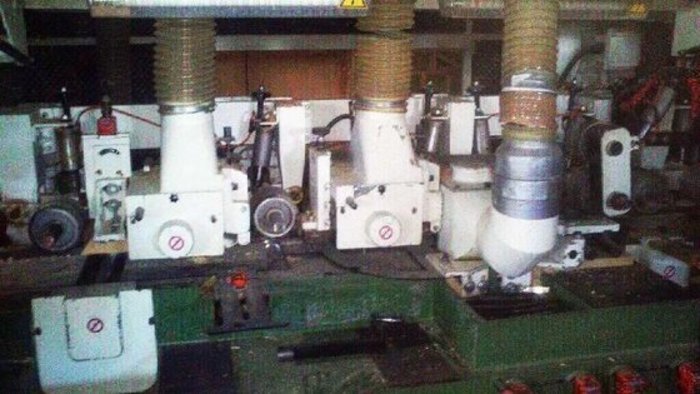

Plane automats Leadermac LMC Compact 623 C used machine Leadermac compact 623, year 12 / 1997 Serial no 864984 CE specification 6 head moulder compact 623. Head sequence 1st bottom fence side head near side head top head top head 6th 5th 4th 3rd 2nd head bottom Including Pneumatic of pressures through out machine lay-up driven feed rollers in table Infeed table [chrome] automatic rise and fall of beam STANDARD EQUIPMENT: Working width (at a tool cutting circle of 140mm) 15-230mm(.59"-9.1") Working height (at a tool cutting circle of 163mm) 10-150mm(36"-6") Number of spindles, min-max 4-7 Basic engine capacity per spindle 5.5 KW / 7.5HP Basic capacity of feed 4 KW / 5HP motor Spindle speed 6000 RPM Spindle diameter 40 mm (50 mm option) Tool cutting circle, first bottom spindle, min-max 125-160mm(4.9"-6.3") Tool cutting circle, vertical spindles, left, min-max 112-200mm(4.4-7.9") Tool cutting circle, vertical spindles, right, min-max 112-200mm(4.4-7.9") Tool cutting circle, horizontal spindles, top, min-max 100-200mm(3.9-7.9") Tool cutting circle, horizontal spindles, bottom, min-max 100-200mm(3.9-7.9") Feed speed, infinitely variable by frequency driven motor 6-24 m / min(19.2-78 fpm) Feed roller diameter 140mm(5.5") Feed roller width 50mm(2") Pneumatic pressure for feed rollers, max 6 bar (87psi) Adjustment range for lay-up table and edge size fence 10mm(.39") Adjustment range of vertical spindles (axial) 30mm(1.18") Adjustment range of horizontal spindles (axial) 20mm(.78") Length of the straightening table 2M(78.7") Mechanical digital readouts for the pressure shoes & hold down unit Full sound and safety enclosure Motorized vertical adjustment of feed Lateral pressure roller opposite first right spindle Chainless cardan feed system Diameter of dust hood for vertical spindle Ø125mm(5") Diameter of dust hood for horizontal spindle Ø125mm(5") Leadermac LMC compact 623, 12/1997 Serial number: 864984 CE specification 6 spindles of arrangement: 1st down 2. page...
