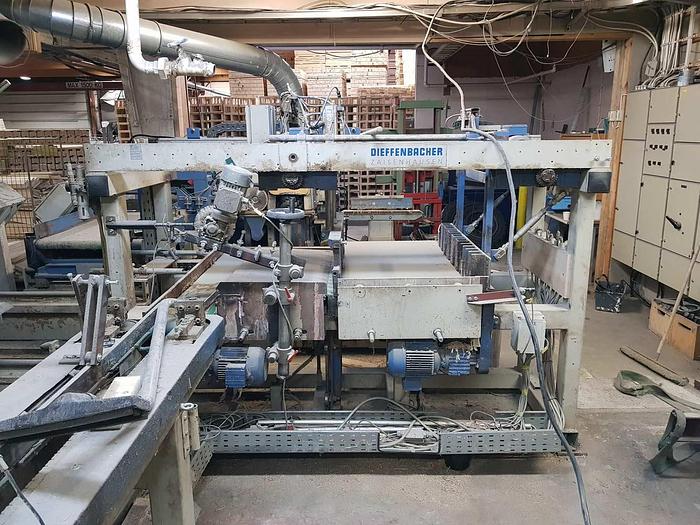

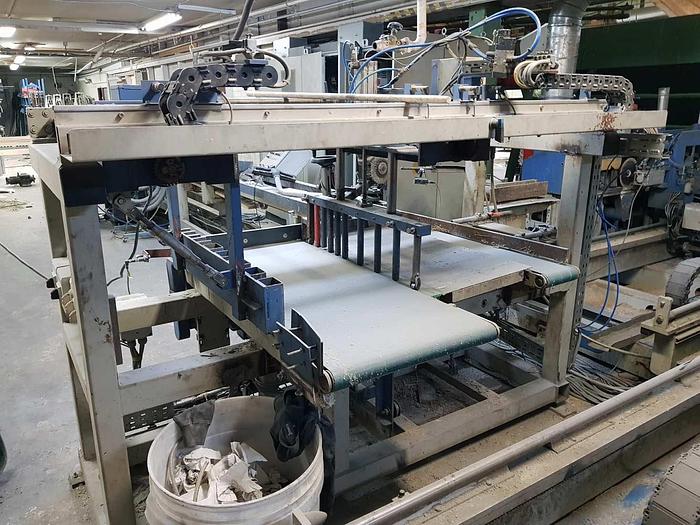

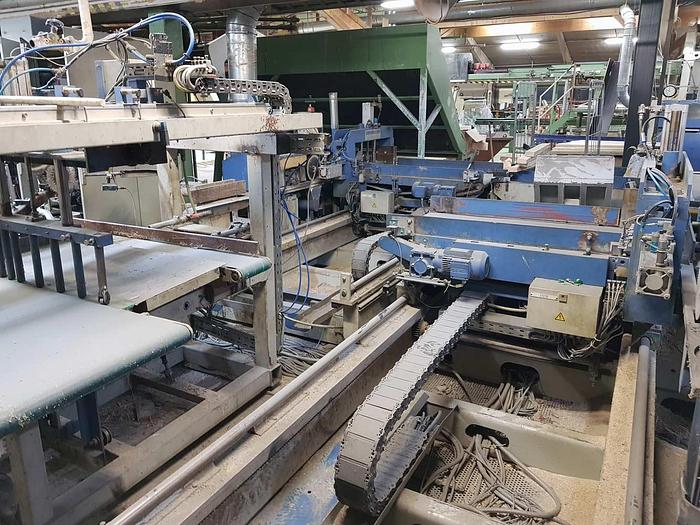

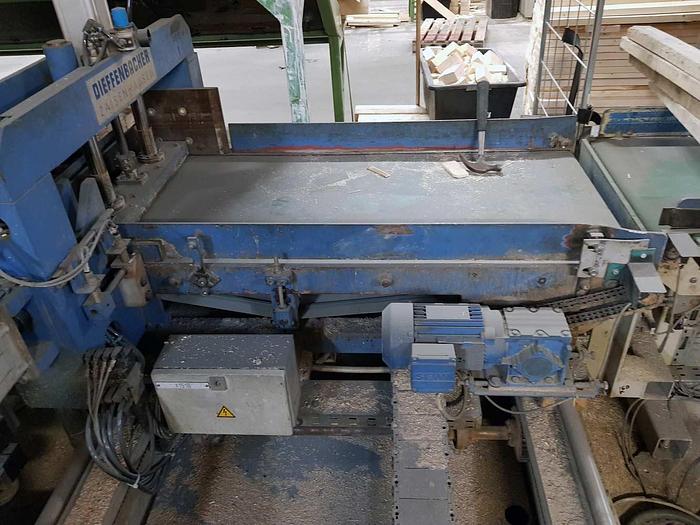

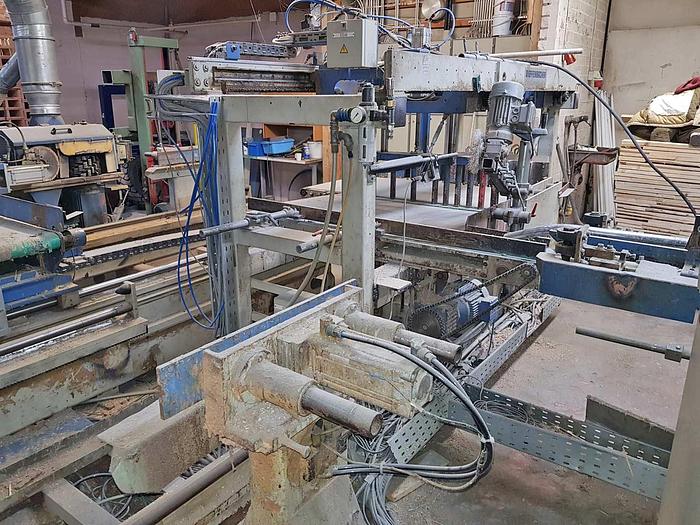

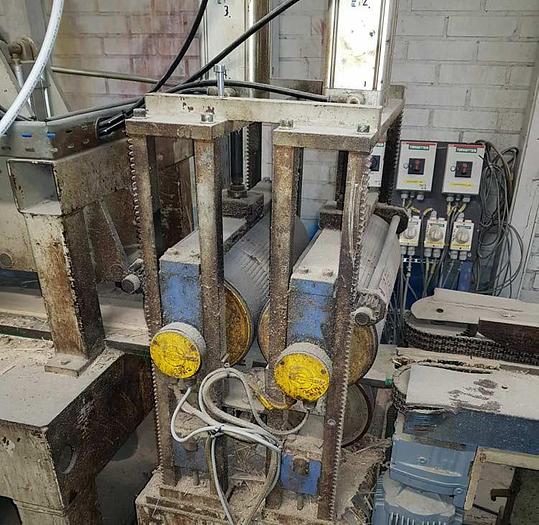

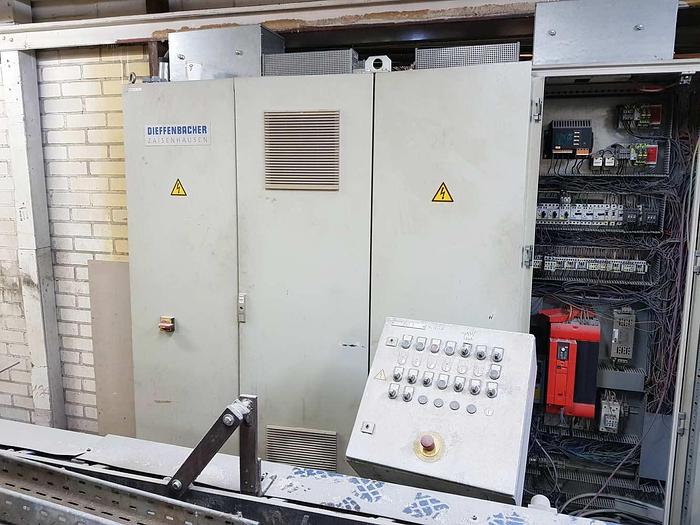

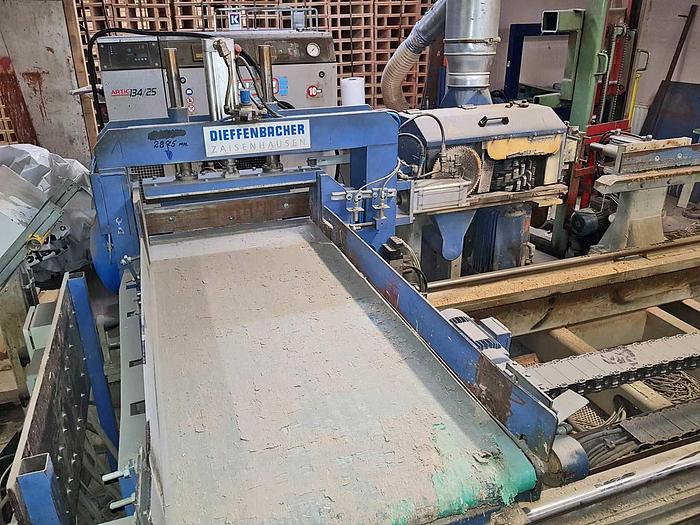

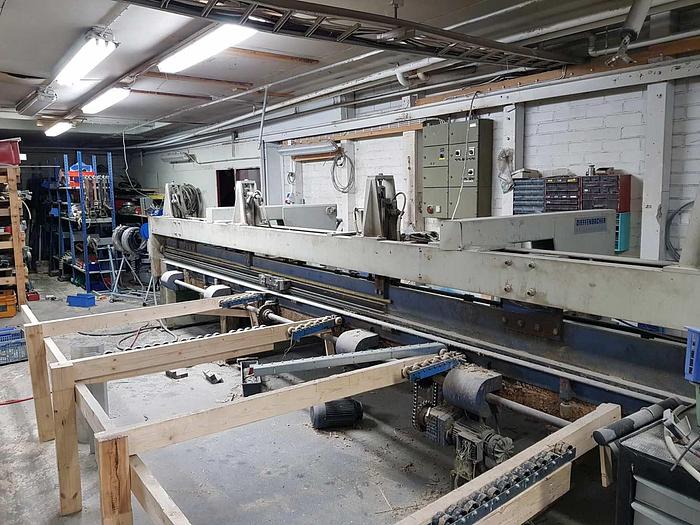

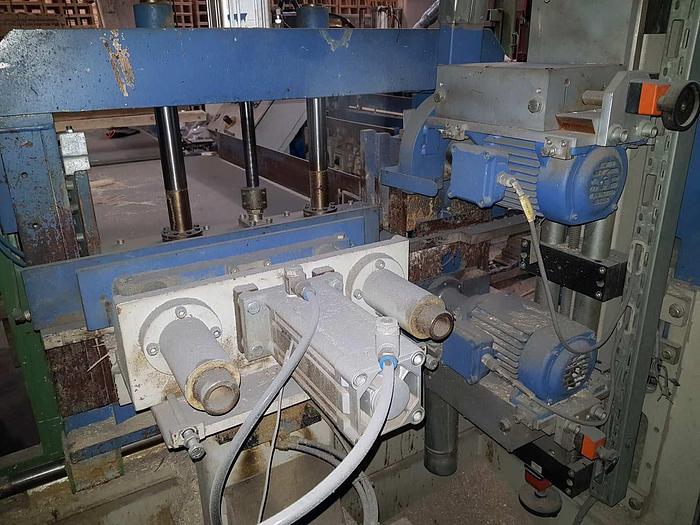

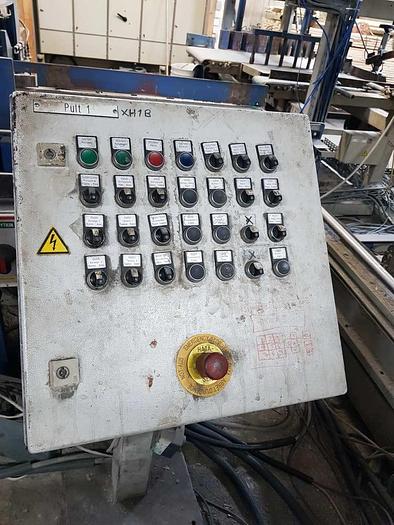

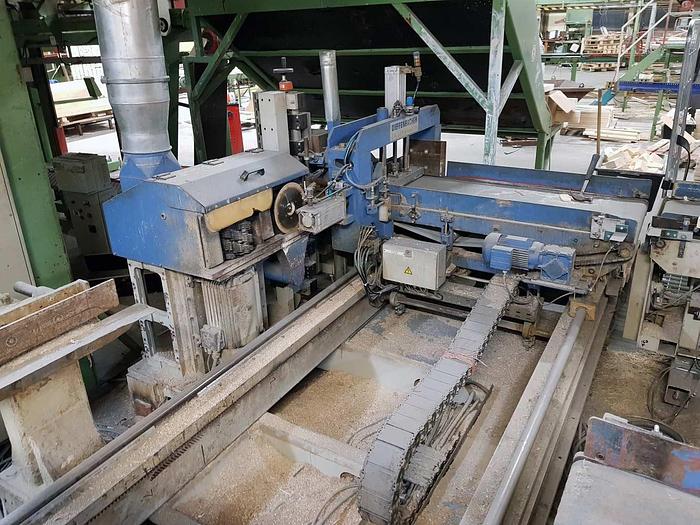

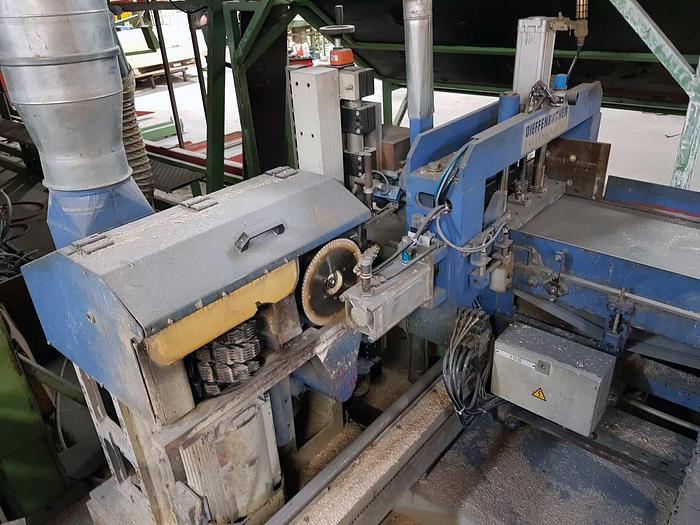

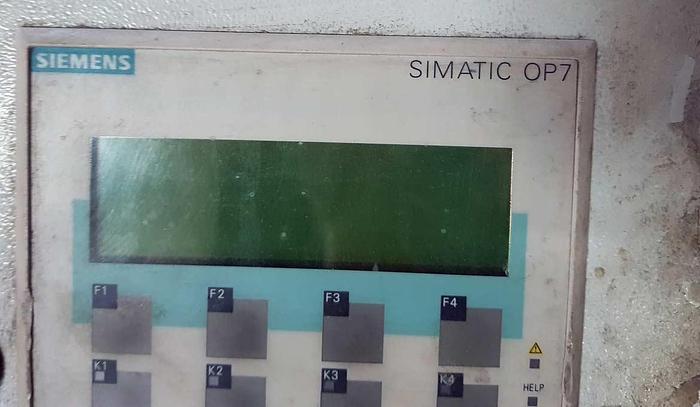

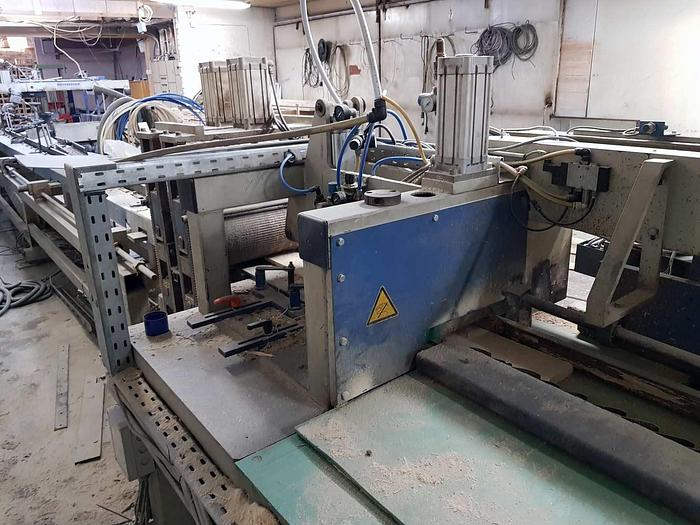

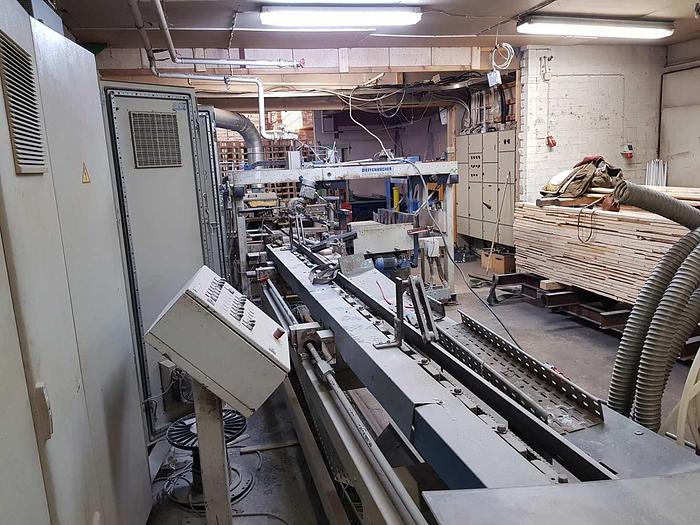

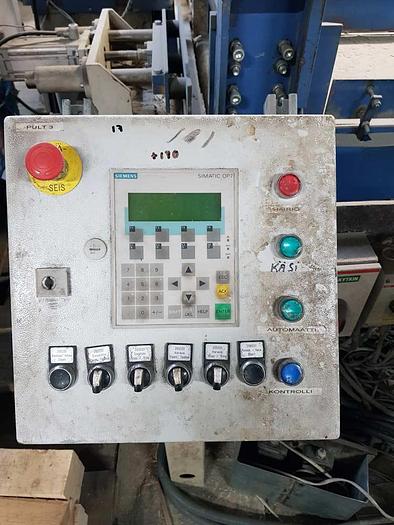

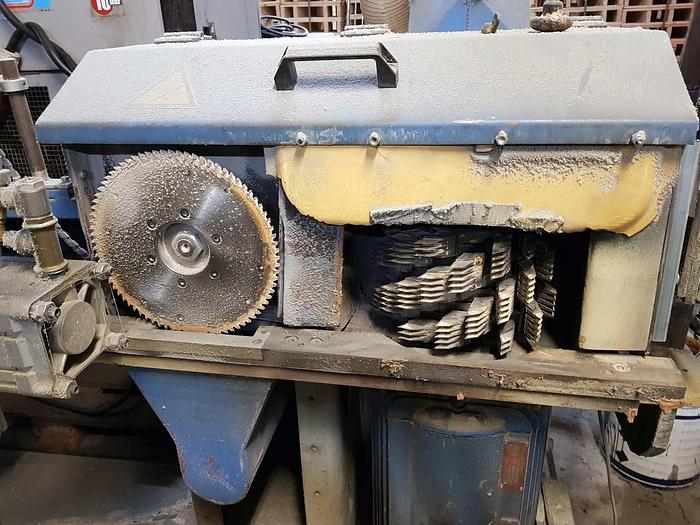

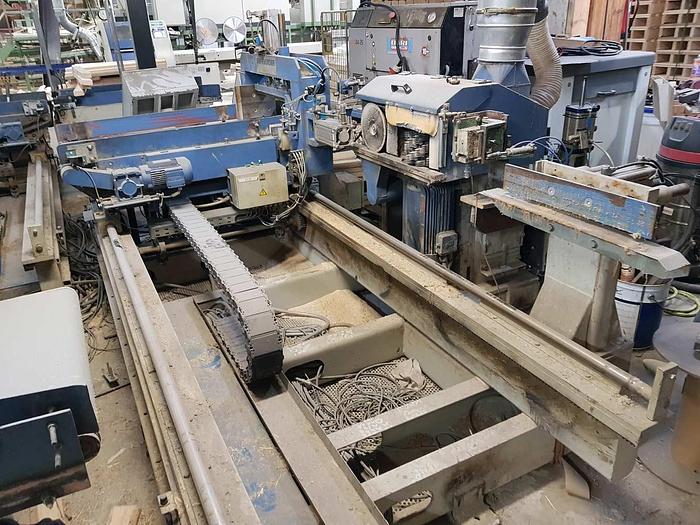

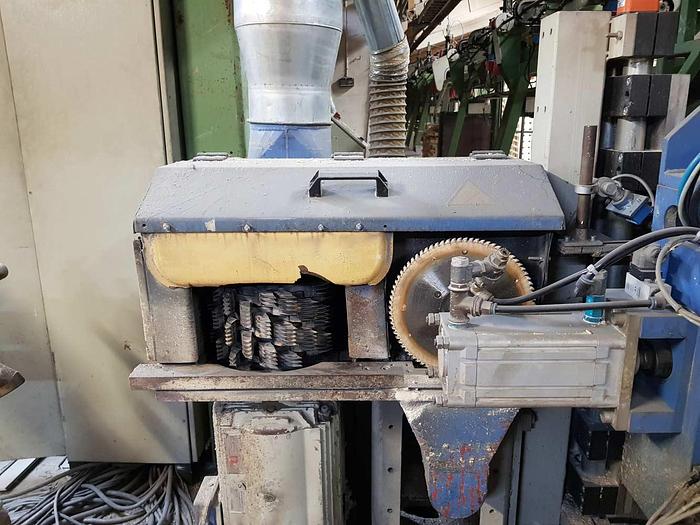

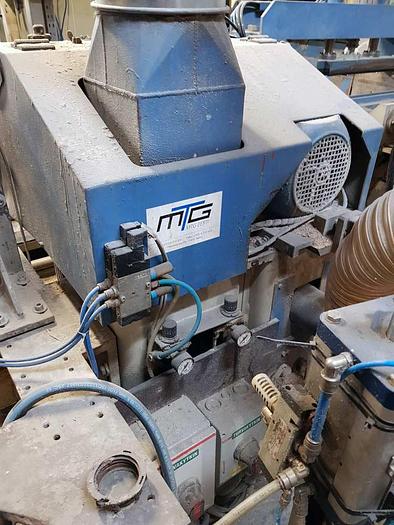

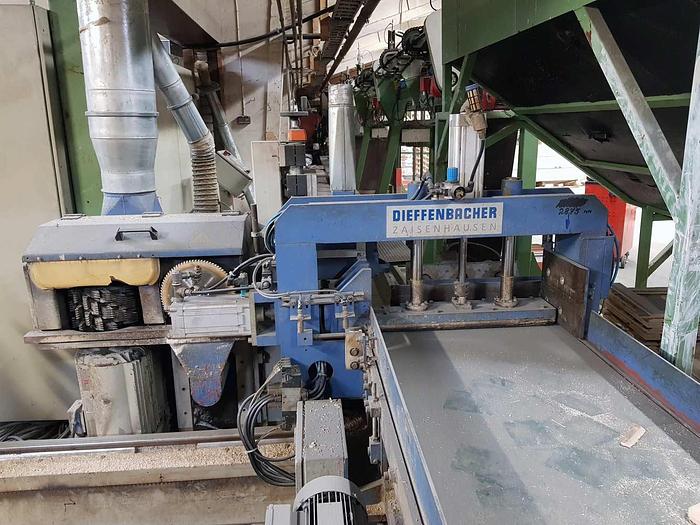

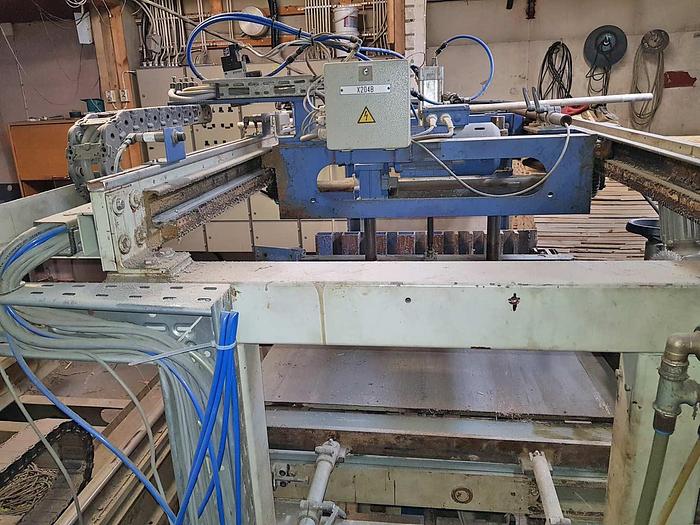

2000 Dieffenbacher Finger jointing system Finger jointing system MEGA 500

Dieffenbacher Finger jointing system MEGA 500 year 2000 Infeed length: 180-1000 (1200) mm Timber width: 40-200mm Timber thickness: 19-75mm Average timber cross section:50x63mm 50x75 mm 50x100 mm 50x50 mm 25x100 mm 25x200 mm 63x63 mm 75x75 mm Timber cross section with finger size of 10/11mm:min.15 max.120 cm2 cm2 Wood species: Soft/hardwood Glue:PVAc &Melamin Line voltage:400V/230V- 50 cycles Control voltage:24 V direct current Overall electrical supply:approx. 85 kW Dust outlets diameter:2x250mm, 1x100mm Exhaust speed at consumers:30m/sec. Compressed-air connection to consumers: R ½“ Air pressure at consumers, constant:6bar Max. air consumption:approx 800 l/min Working height: 900mm Load on foundation:2kp/ cm2 All necessary direct protection devices of the machines are designed according to European prescriptions and are part of our scope of delivery. All indirect protection devices, like barriers, fences, security balustrade are to be provided by buyer according to local prescriptions on his own charge. To be provided locally: 1. Electric main power supply to switch cabinet 2. Dust exhaust system 3. Compressed-air connection to plant units 4. Wiring channels 5. Necessary safety barriers 6. Hydraulic oil The system components supplied by our company are exclusively intended for processing, conveying and finger jointing of wooden board sections. •Product parameters: Width:40 - 150 mm Length: 180 -1000mm Thickness:18 - 80mm Cross section max.10cm² Cross section min.:60cm² Kinds of wood to be processed.soft wood Output 12 – 30 workpieces / mindepending on wood dimensions Technical Data 4.2 Line Feeder 1/1 Package width 520 mm Table length 1000 mm Belt drive motor 3x0,55 kW Technical Data 4.2 Hogging Unit with Finger Joint Cutter Cutter table width 520 mm Cutter table length 1000 mm Cutting height 200 mm Cutter spindle diameter 50 mm Hogging set diameter 250 mm Shaper motor performance 2x22 kW Hogging set motor performance 2x9,2 kW Performance conveyor belt motor 2x0,55 kW Performance cutter table infeed 2x2,2 kW Conveyor belt speed app.60 m/min Cutter spindle speed 4600 rpm Hogging set speed 2800 rpm Shaper infeed 2-30 m/min The drives of infeed cutter table and glue application are frequency controlled and thus Infinitely adjustable.
