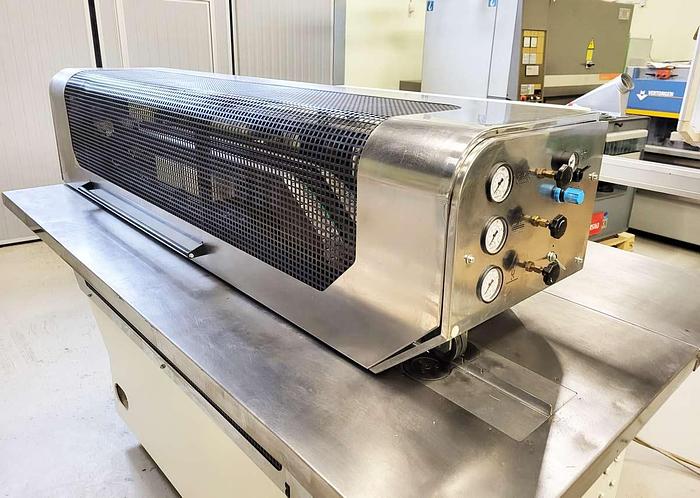

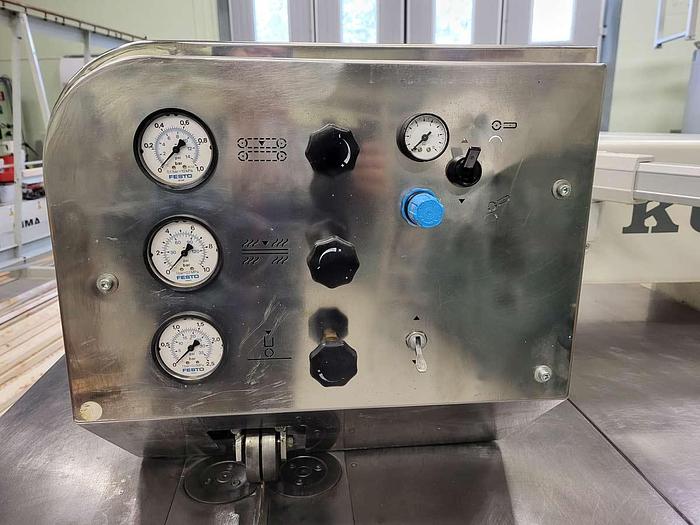

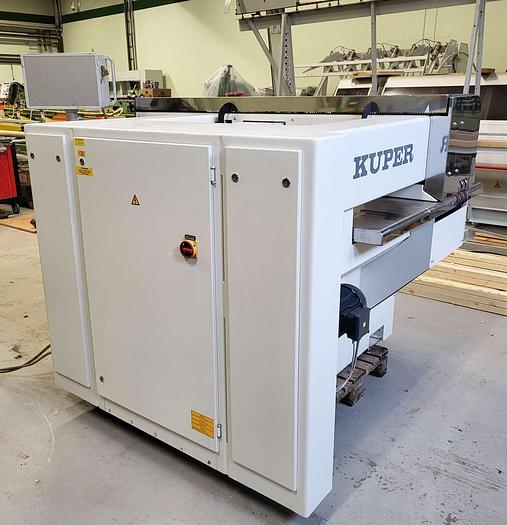

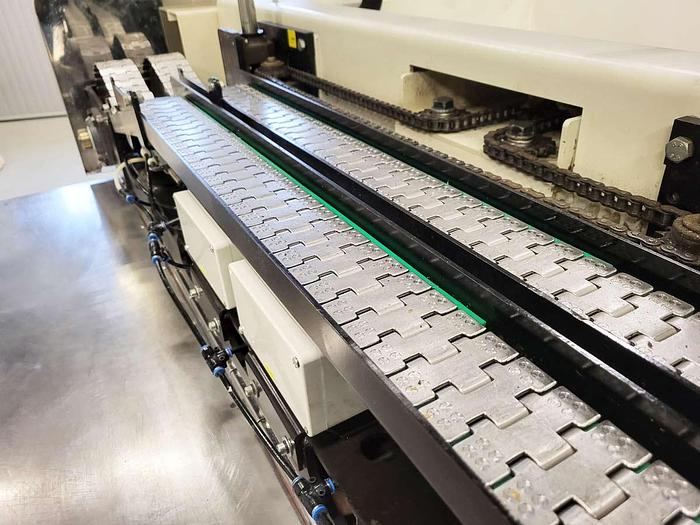

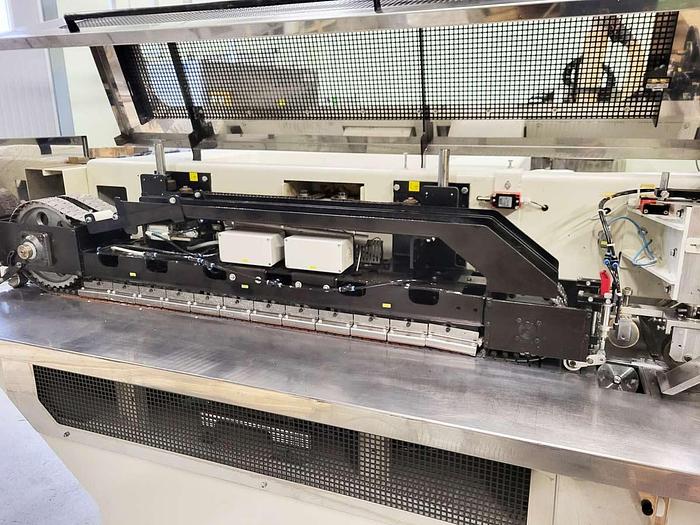

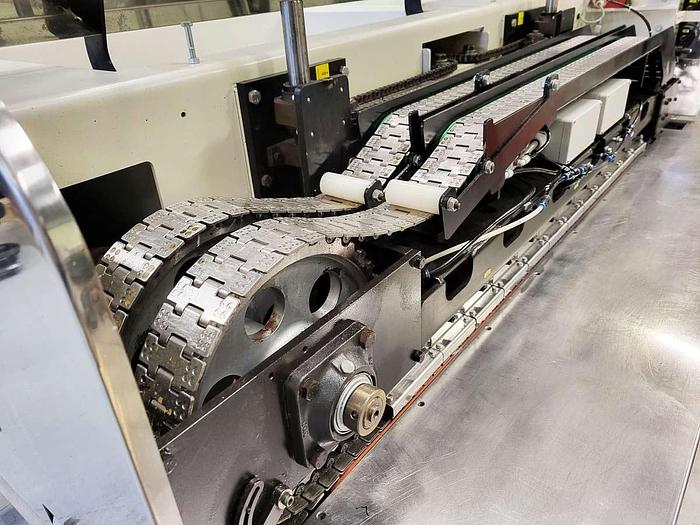

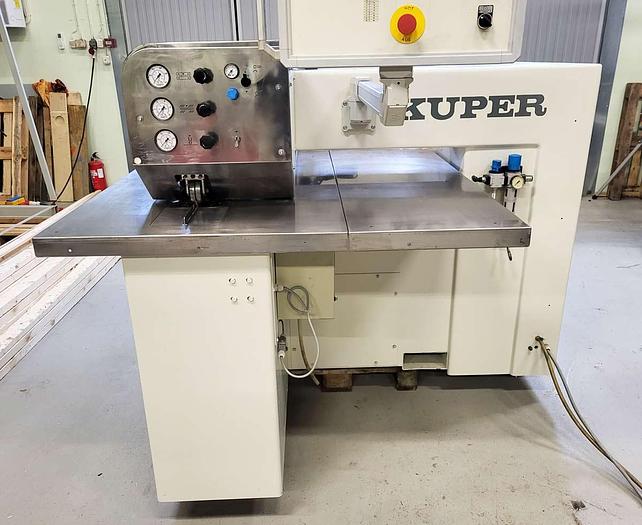

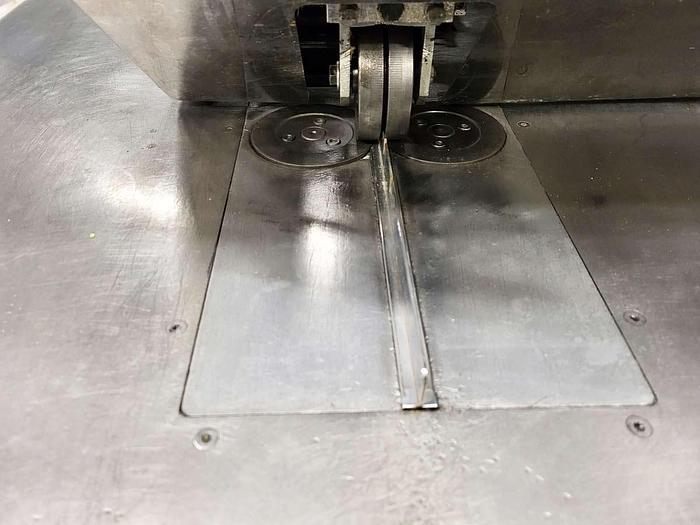

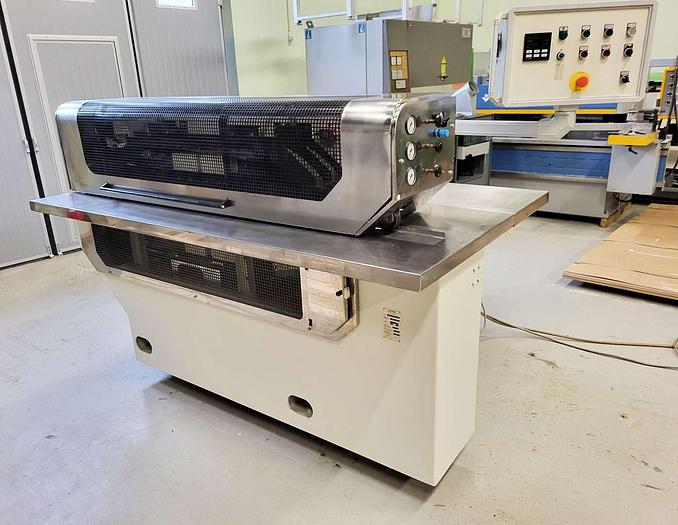

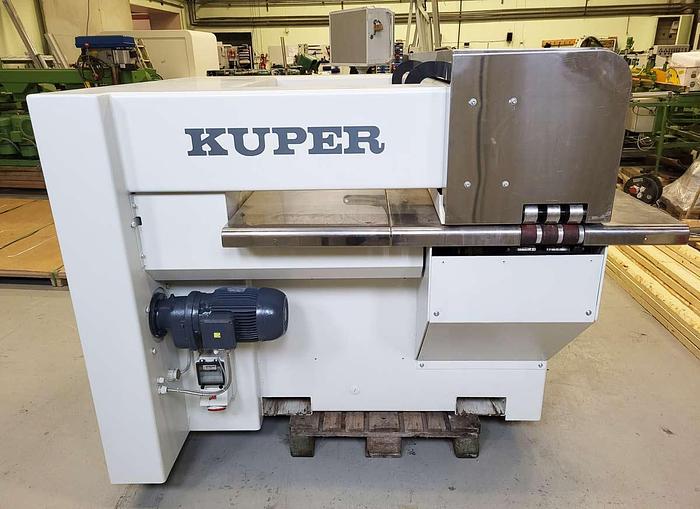

KUPER Veneer Splicer FLI Innovation

KUPER Veneer Splicer FLI Innovation

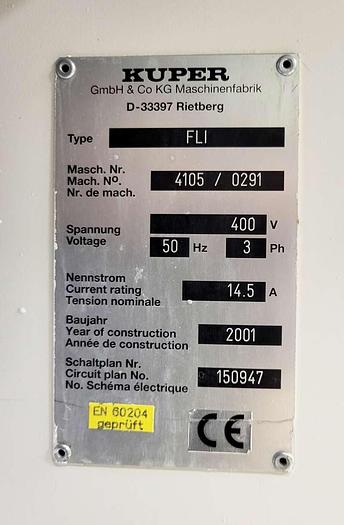

manufacture Kuper Germany

Type FLI Innovation

year 2001

veneer splicing via joint gluing (integrated)

technical Data

Throat depth: 1000 mm

Veneer thickness: approx. 0.3 to 1,5mm ( depending of veneer )

Veneer length: from approx. 350 mm

Veneer strip width: from approx. 45 mm

Feed speed: approx. 20 - 50 m/min

Length of heating zone 1200 mm

Heating temperature approx. 0 - max. 220 o C

Main drive 2,2 kW

heating rail 0,46kW

Operating: 400 V / 50 Hz, 3 phase

Total Amp: 14,5

Average output 5,0 kW

CE marked

Air consumption: 30l / min, 6 ar

required space 2370 x 1960 x 1470 mm

approx. 2050 Kg
