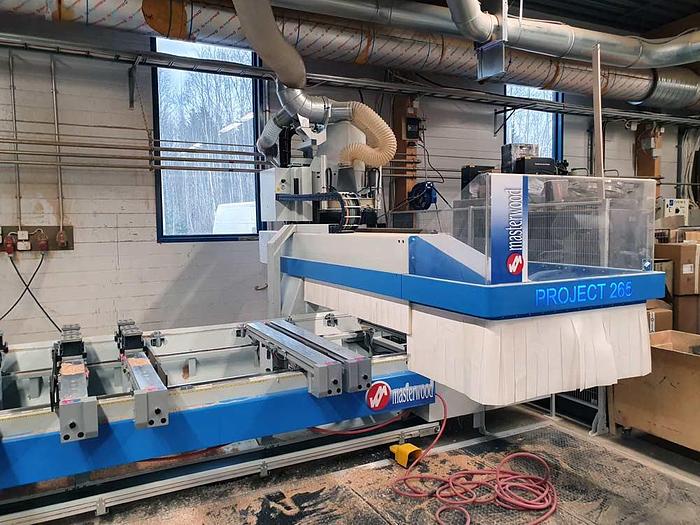

2015 Masterwood Italy CNC machine center MASTERWOOD Project 265

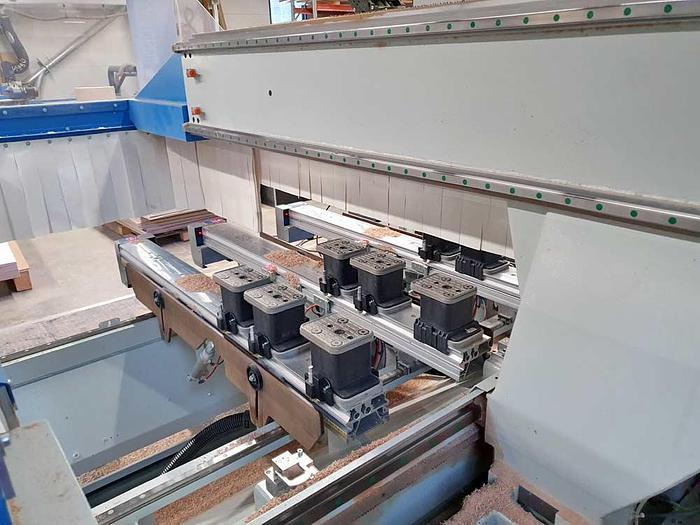

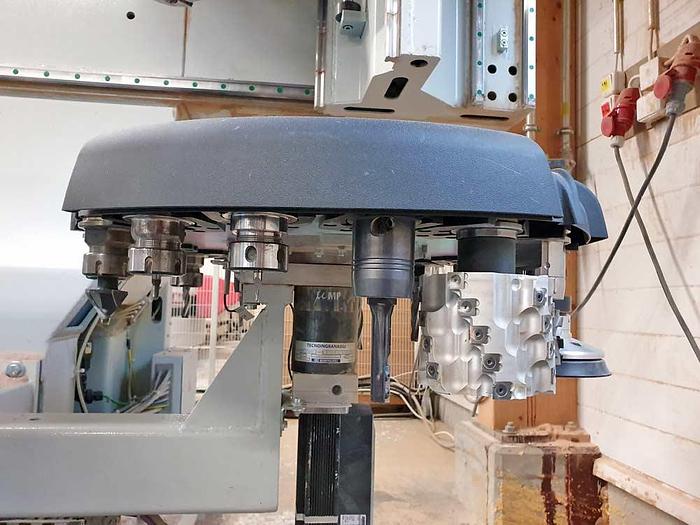

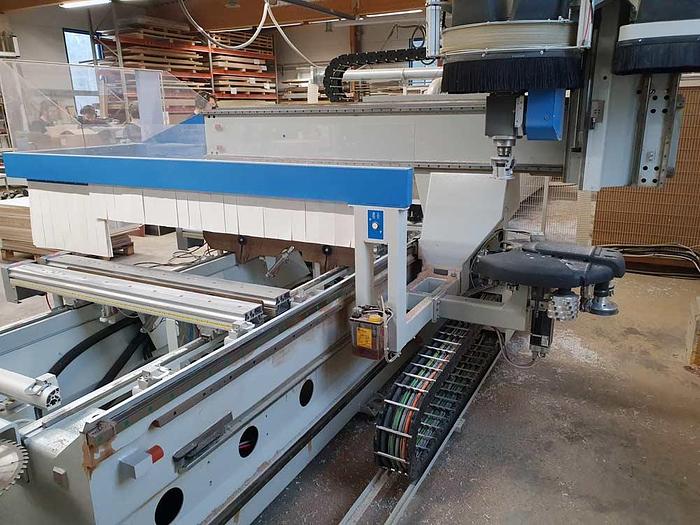

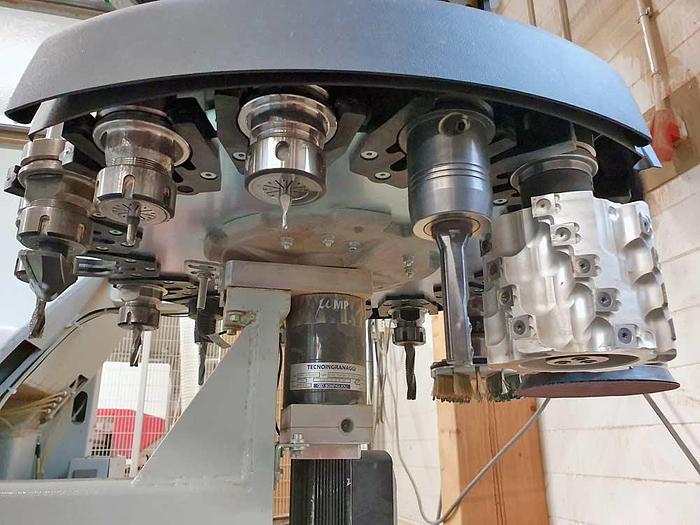

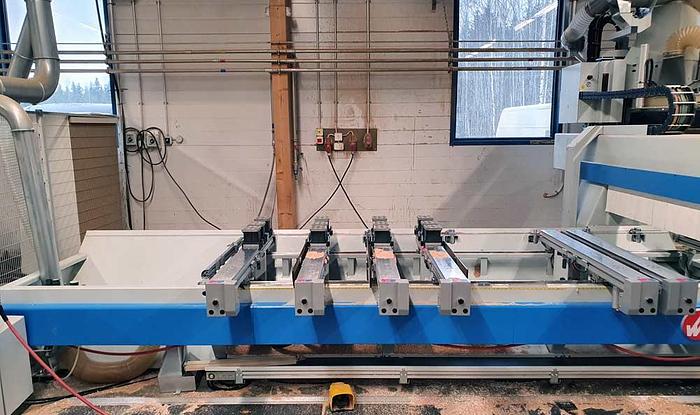

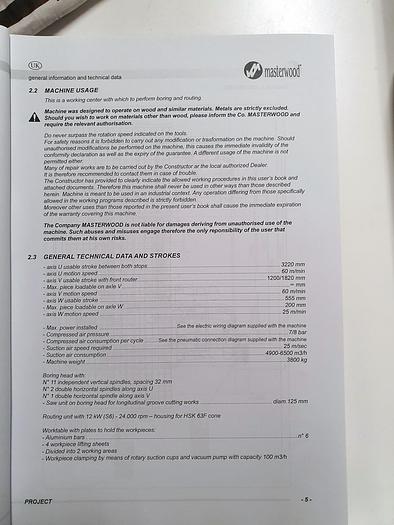

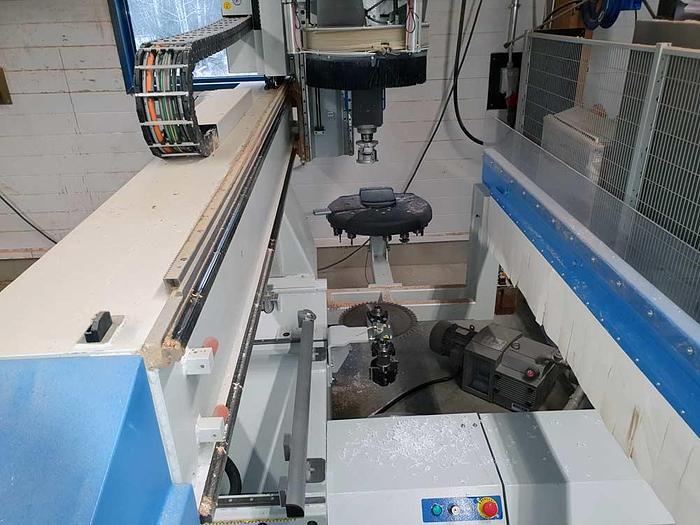

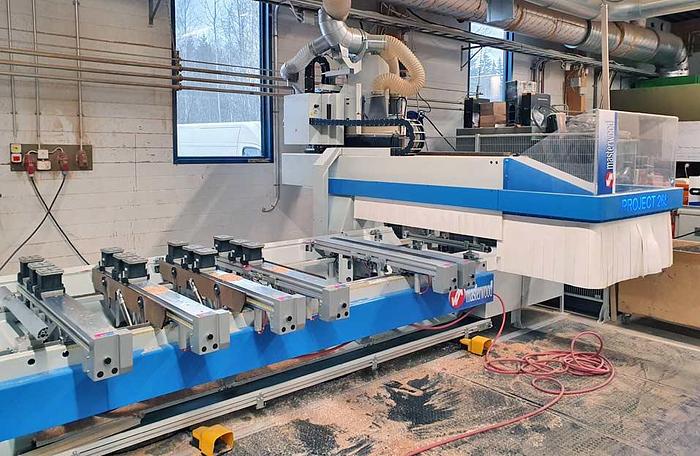

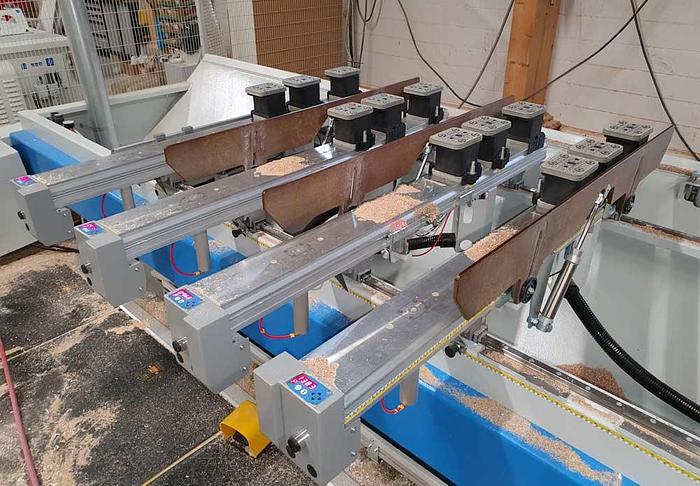

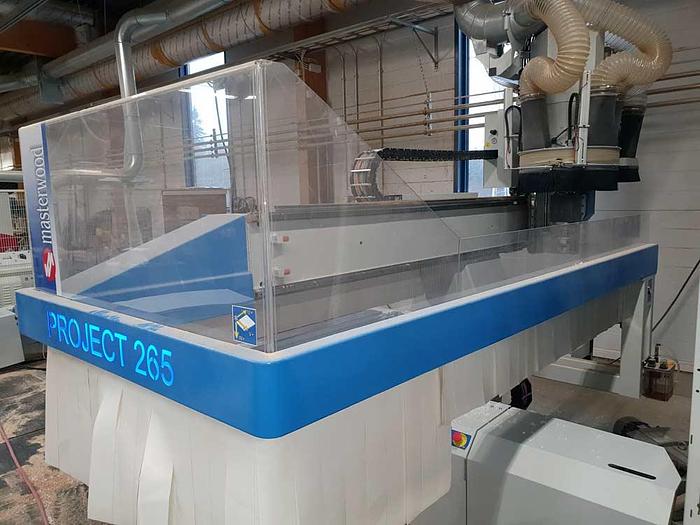

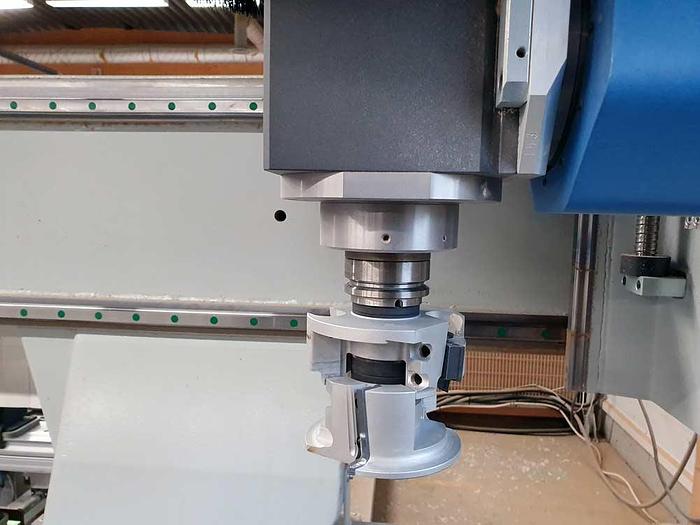

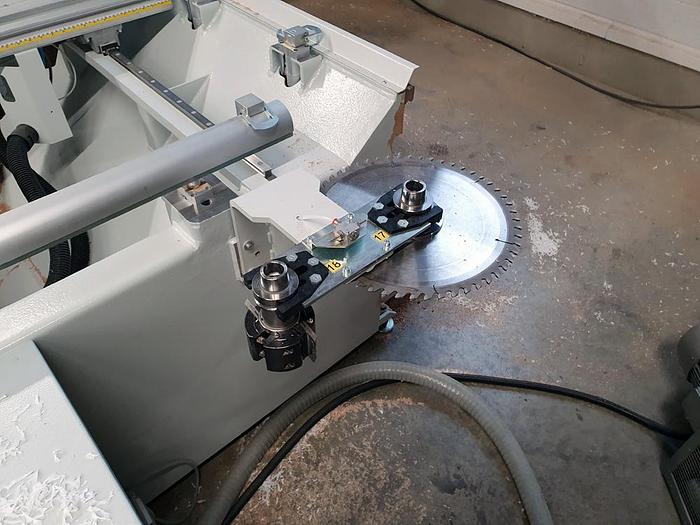

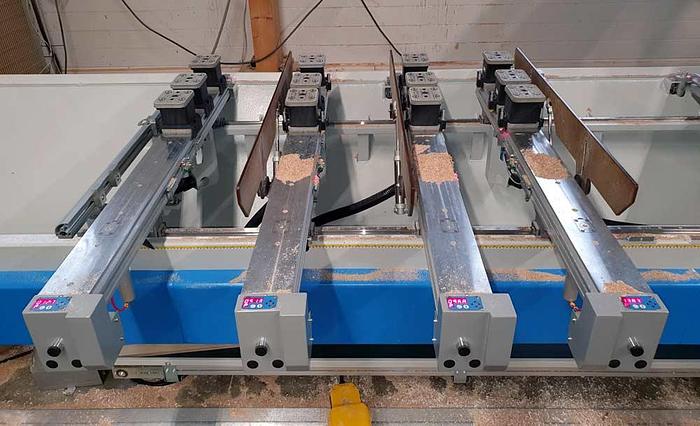

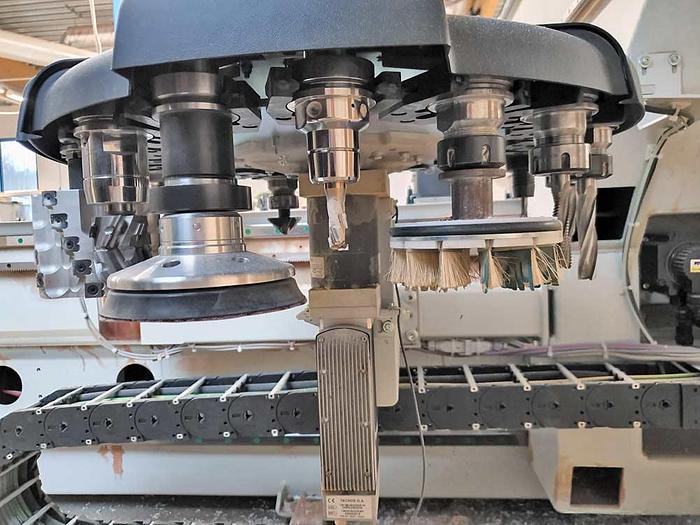

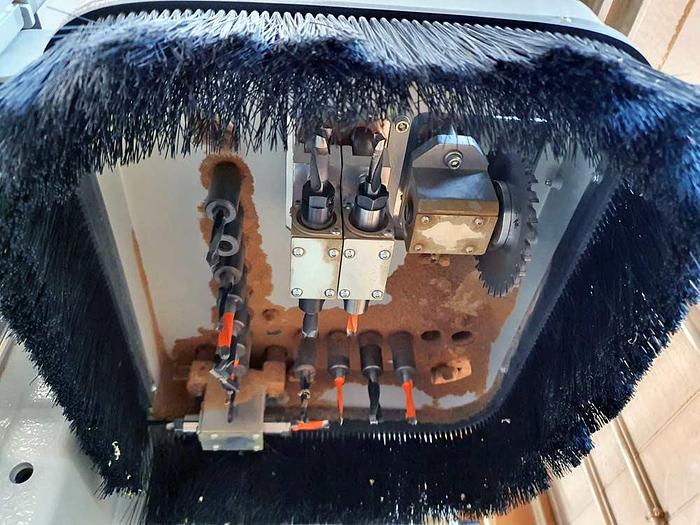

CNC machine center MASTERWOOD Project 265 year 2015 5 axles Axis U Stroke between the two stops: 3220mm Axis U Motion speed 60m/min axis V usable stroke with front milling machine 1200/1820mm Axis W usable stroke 555mm max piece load capacity on axis W 200mm Axis W Motion speed 25m / min Machine weight 3800 Kg Drill head No. 11 independent vertical spindles, distance 32 mm No. 2 double horizontal spindles alone on the axis U No. 1 double horizontal along a'xis V Saw-Uinit on drill head for longitudinal groove cutting diameter 125mm Milling unit with 12 kW (S6) 24,000 rpm Housing for HSK 63F cone Worktable with plates for holding the workpieces Aluminium bars no. 6 4 workpiece lifting plates Becker vacuum pump General Information 5-axis CNC machining center with new "rack and pinion" Y-axis motorization: power and flexibility at the touch of a button . " Cantilever " structure for wide panels. Large work surfaces in reduced form: Project 265, CNC for panels and solid wood, is particularly suitable for processing furniture, doors and windows and can machine large parts up to approx. 1800 mm. The birotative head allows fast tool placement and guarantees the execution of any type of machining without the need to use expensive aggregates
