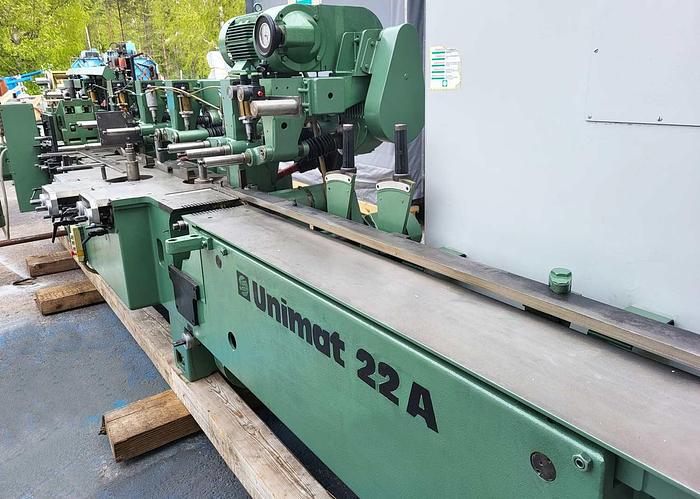

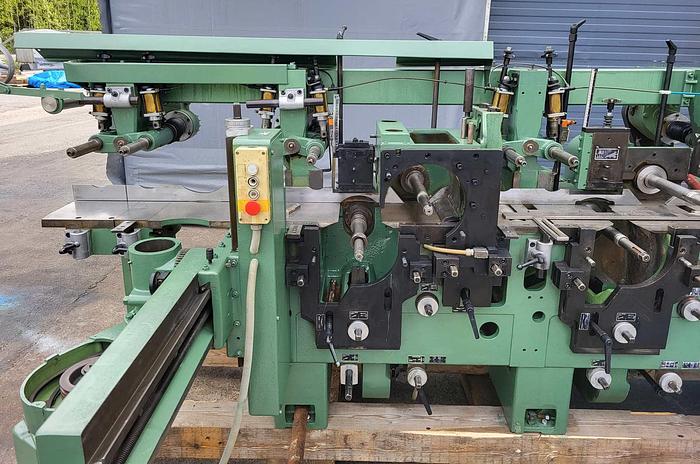

WEINIG Planer /moulder Unimat 22A, 9 head

WEINIG Planer /moulder Unimat 22A, 9 head

Year 1987

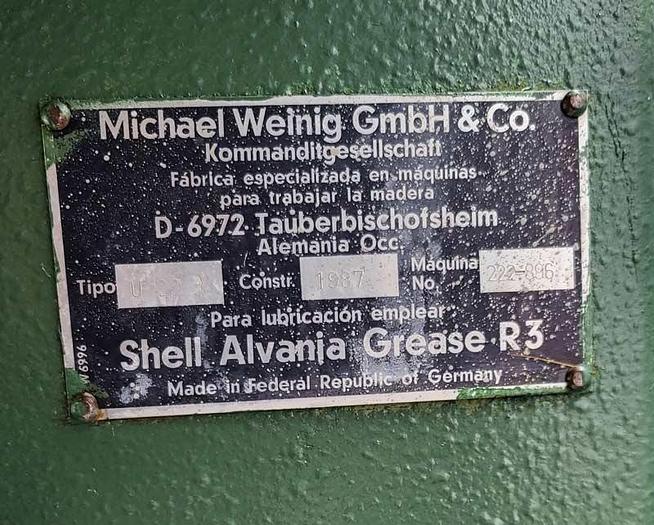

S/N 222-896

In good working condition

Maximum planing width 230mm

Maximum planing height 140mm

diamter of the spindles: 40mm

RPM 6000 / min

in feeding table langth 2m

Number of heads 9

configuartion of the heads

1. spindle Bottom 5.5kw

2. spindle right 5.5kw

3. spindle Left 5.5kw

4. spindle Right 5,5 5kw

5. spindle Top 7,5 kW

6. spindle bottom 5,5 kW

7. spindle Top 5,5 kW

8. spindle Bottom 5,5 kW

9. spindle universal 7,5 kW

Feed speed adjustable on variator up to 36m/m , 5,5kw feed motor

central adjustement motor 0,75 kW

3 pulling rollers in the table

Feed driven on cardan shafts

table Waxilitpump

Dimensions: L x W x H = 6,0 x 2,2 x 1,8m

weight 6500 Kg
