2004 Brandt CNC Edgebanding machine BRANDT OPTIMAT KDF 530 C

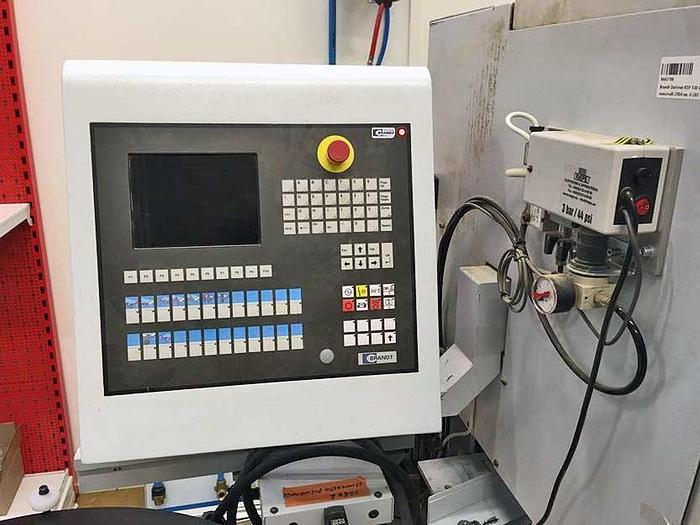

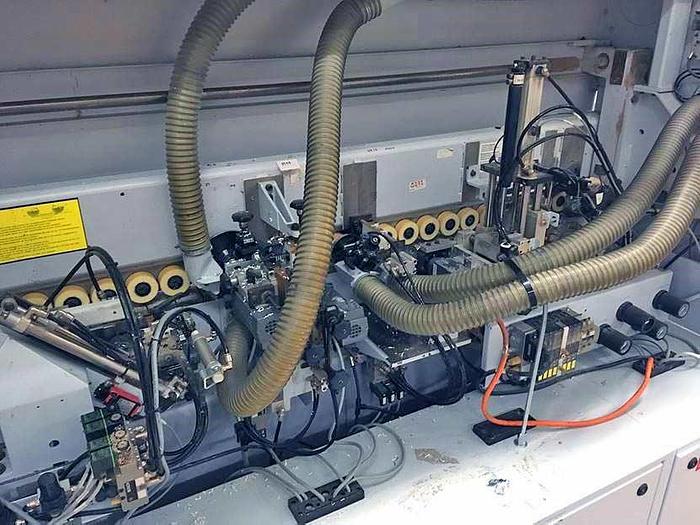

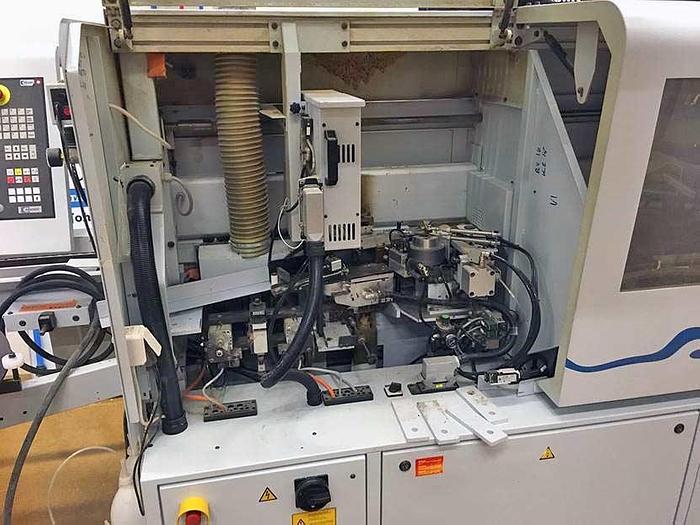

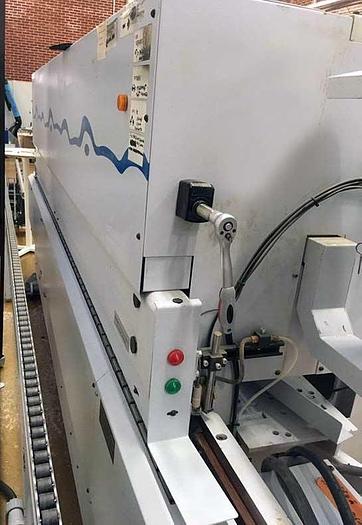

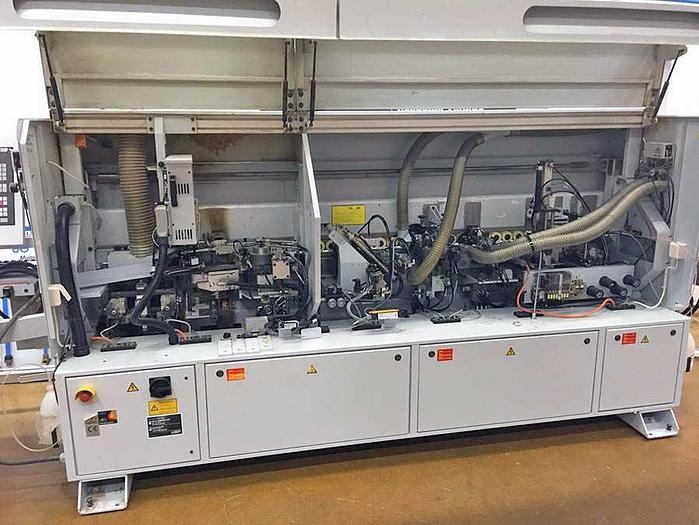

CNC Edgebanding machine BRANDT OPTIMAT KDF 530 C the year 2004 Machine number : 0-261-04-3654 Edge Banding Machine Optimat KDF 530 C Single-sided edge banding machine in right-hand execution for hot melt glue. Gluing unit for granulated hot melt glue. Processing of PU adhesives is possible, in compliance with the processing prescriptions. Glue reservoir underneath the glue roller. Clue application to the workpiece by means of glue roller in synchronism or anti-rotation. Electronic glue temperature adjustment. Automatic reduction of glue temperature in case of work interruptions. Contact heater shoe for preheating the panel edge in order to improve the gluing quality. Automatic edge magazine for coiled material and fixed lengths, incl. coil cut-off and roller plate, diam. 800 mm. Standard equipment with panel control incl. optic indicator. Pressure zone with pneumatically actuated main pressure roller as well as a special post-pressure roller for condensation of the top and bottom glue joint. Centrally adjustable top pressure. Central lubrication of chain track by hand. Control panel at machine infeed. Adjustable infeed fence. Joint trimming unit 2 x 2,2 kW, 200 Hz for jointing works before gluing, vertical spindle adjustment, horizontal electro-pneumatic control, 2 motors ( 1 x synchronism, 1 x anti-rotation ), max chip removal / stroke 3 mm, cover hood with extraction socket diam. 120 mm. 2 diamond joint cutter heads diam. 100 x 48 x diam. 30 mm, T = 3+3, Keyway 8 x 3 mm, max.workpiece thickness 42 mm End trimming unit for front and rear edge overhang. Precise guidance by means of linear guides. 2 motors 0,18 kW ea. 200 Hz, 12.000 U/min. Drawing cut for a high degree of precision. Swiveling range straight to chamfer 0-15 degrees. Equipped with 2 end trim saws diam.100x2,6x32mm T = 30 Pneumatic adjustment chamfer/straight, for re-adjusting the trimming unit from chamfer to straight. Flush trimming unit top and bottom vertically and horizontally sensing. Swiveling range 0 - 15 degrees. 2 motors each 0,27 kW, 200 Hz, 12.000 rpm equipped with 2 combined cutters radius/ straight diam. 56/50x16x16mm, T=4, r = 3 mm Pneumatic adjustment trimming unit for the electro-pneumatic 2-point-adjustment of the trimming unit. 5736 - Scraping unit for PVC edgings Sensing from the top, bottom and lateral, for chamfering and rounding off of previously trimmed PVC-edgings. Edge thickness max. 3 mm, profile knives r = 3 mm. Pneumatic adjustment scraping unit for the lateral movement of the scraping unit. Contour trimming unit, top, and bottom, for contour trimming of head edges a post- and soft forming panels and rounding off thick PVC edges. Wooden edges only possible under certain conditions, depending on trials. Post- and soft forming panels, which have low-density care and delicate overlay materials may not provide proper trimming results. 1 motor 0,35 kW, 200 Hz, 12000 rpm. Edge thickness max. 3 mm ( radius ) Workpiece thickness 40 mm Standard equipment with 1 radius cutter r = 3 mm. 5455 - Buffing unit For finishing the edges top and bottom,2 motors 0,09 kW each, inclividually suspended, lateral and height adjustment. 2 molton wheels diam. 120 x 20 mm. Sound cover hood with central aspiration socket diam. 100 mm and scraping chip collection box with aspiration socket diam. 100 mm. Those machines, which have a joint trimming unit ( KDF models ) are equipped with an additional aspiration socket, diam. 120 mm. Electric equipment with a modular control system for easy service. Electronic control PC 16 Brandt electronic control system with graphic surface for simple and comfortable operation and programming of a Brandt machine. Technical details: OPTIMAT KDF 530 C - Tiltable Operation board at machine infeed - Long life foil keyboard - Colour flat screen monitor for easy viewing Industry proved PC with compact flash disk for data storage - Unit selection touch buttons with LED - Operator's support by means of colour picto-grams - Online change from one language to the other - Presentation of the essential set value and actual machine Value - Clear text information about the status Simple choice and correction of line points Simple axis adjustment ( only if the machine is equipped with the adjustable units ) - Clearly readable integrated online help - Production data determination for production cost information, edge lengths, number of workpieces etc., daily or, total value - Indicator for inspection + service intervals - Storage of processing programs - Production acc. to processing programs - Data protection storage an floppy disk Admitted temperature tolerance min. + 5 degrees max. + 35 degrees C. In case of main voltage fluctuations of more than +/- 10%, a voltage stabilizer must be installed at customer's site. Those machines, which are built for E.C. member countries, are built acc. to EU safety regulations 98/37/EG, annex I. Workpiece thickness 8 - 50 mm Edge thickness: fixed lengths 0,4 - 6,0 mm (max. 6 x 55 mm) coil cut-off 0,4 - 3,0 mm (max. 3 x 30 mm) or, max. 1,0 x 55 mm) Feed speed approx. 11 m/min. Electrics 400 V - 3 Ph. - 50 Hz Conn. value 10 kW Pneumatic Pressure 6 bar Machine length approx. 4860 mm G.0001 Number : 4842 1 x right SET OF TOOLS R = 2 MM (CHANGE WITH R = 3 MM) instead of the standard cutters and scrapers r= 3 mm, tools r= 2 mm are mounted. G.0004 Number : 2035 1 x right QUICK MELT GLUING UNIT for premelting container as well as quickly changeable gluing unit with a low volume, to be mounted instead of the standard gluing unit.
