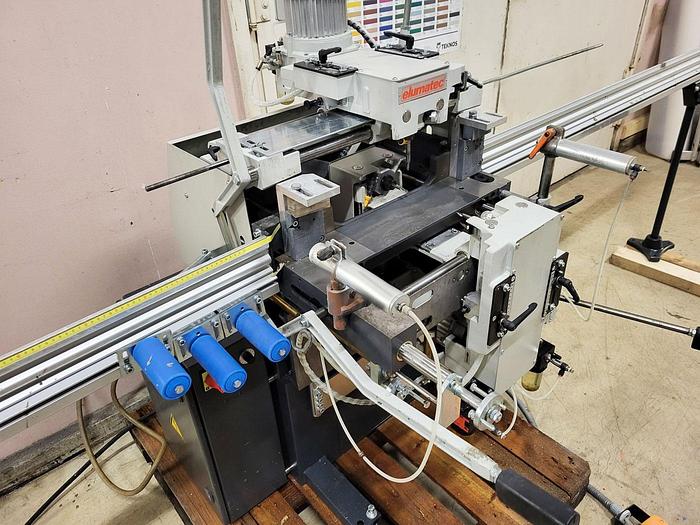

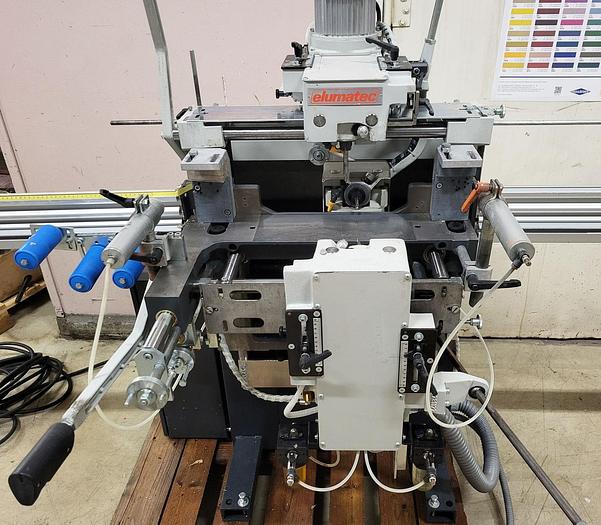

ELUMATEC copy router KF1783

Copy router ELUMATEC KF1783

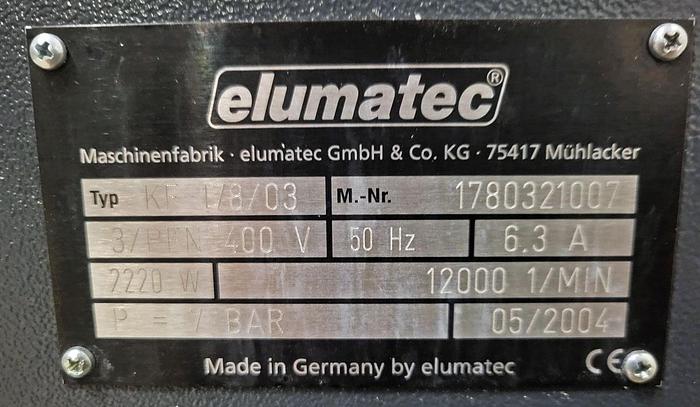

Year of construction 05/2004

S/N 1780321007

3-sided processing in one clamping operation

The ideal machine for economical door production

For routing locking cylinders and round rosettes (security locks) in profile systems

or multi-chamber profiles with large dimension depths

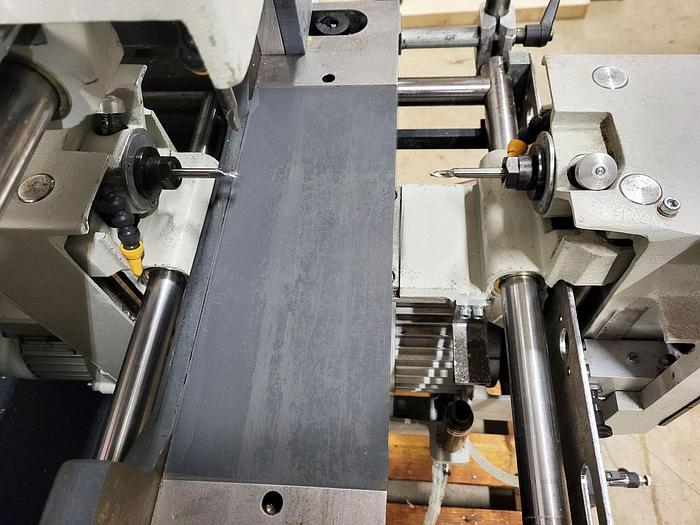

Three copy routing units that work completely independently of each other

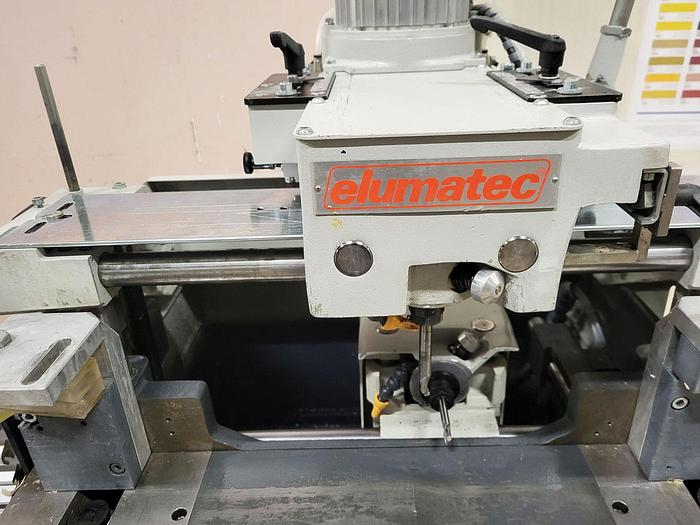

Separate control of horizontal and vertical milling head

The workpiece is clamped upwards towards the contact surface of the lock,

This eliminates the need to readjust the machine for the backset for profiles of different heights

The "spindle lock" function facilitates tool changes

Flexible backgauge system with support rollers and adjustable folding stops

Speed: 12,000 revolutions per minute

(Infinitely variable speed control from 3,000 rpm to 12,000 rpm)

2 pneumatic copying pins at the bottom, 1 copying pin at the top

Pneumatic material clamping

Spraying device

Vertical milling area (top): 330 x 130 mm

Horizontal milling area (from the front or rear): 220 x 95 mm

Stroke: 110 mm

Voltage 400V, 50Hz

3 x 740 W / 1.0 Hp

With lateral stops

Weight: approx. 360 kg

Machine dimensions : L x W x H = 0.98m x 1.25m x 1.61m
