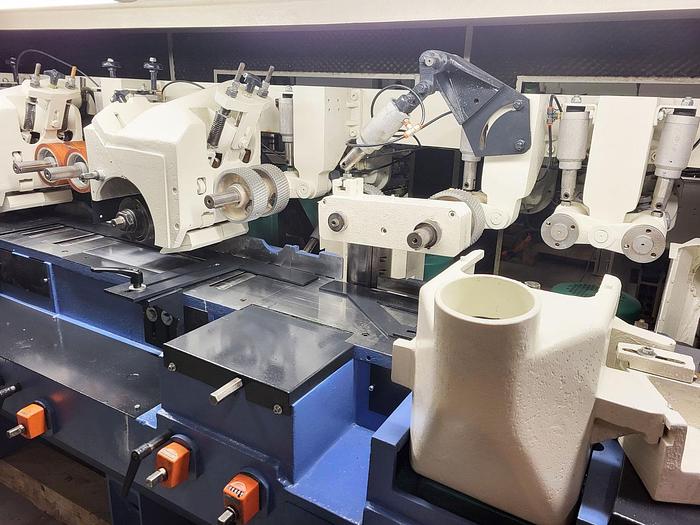

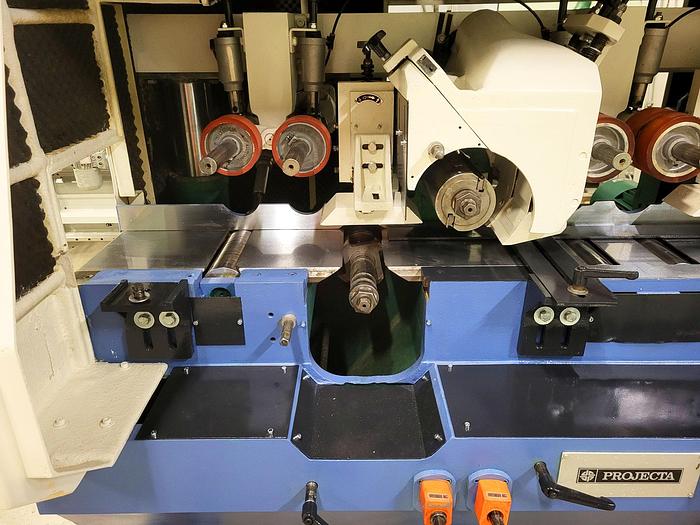

Leadermac LMC 723, 7 spindles moulder and planer

Leadermac LMC 723, 7 spindles moulder and planer

manufacture Leadermac Taiwan

S/N   864651

year 1997

Technical Specifications:

max width of the work piece 15-230mm

max height of the work piece 10-150mm

min length 200mm

7 spindles / heads:

1. horizontal lower spindle 230mm, 15 HP

2. vertical right 160mm, 10 HP

3. vertical left 160mm, 10HP

4. vertical right 160mm, 10HP

5. horizontal upper 230mm 15HP

6. horizontal upper 230mm 10HP

7. horizontal lower spindle 230mm, 10 HP

spindle R.P.M 6000

diameter of spindles 40mm

allowable cutting circle

Vertical: 112-232mm

horizontal : 100-225mm

motorist adjustment of planing height and width

control of feed speed by frequency inverter 6-36m/min,  feed engine 3.7kW

chromed surface of the machine table

feeding roller drive system : shaft, gearbox and universal joint mechanism

table rollers: driven

Pneumatic top pressure

cardan feed roller drive

Sound insulation bonnet is present and not fitted in the picture!

the diameter of the outlet nozzle 7x125mm

dimensions L x W x h = 5,85m x 1,75m x 1,8m

weight 5300kg
