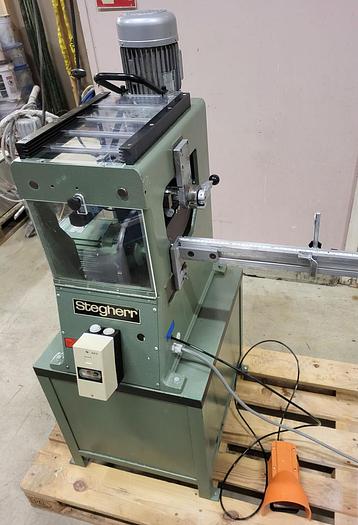

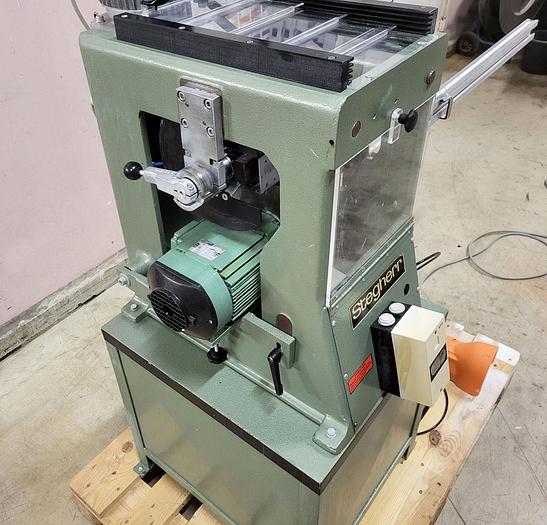

STEGHERR KSF-mini cross rung milling machine

STEGHERR KSF-mini cross rung milling machine

Manufacturer Stegherr Germany

year of construction 1992

for the production of all cross glazing bar joints

( also berets profiled rungs can be processed

3-sided machining

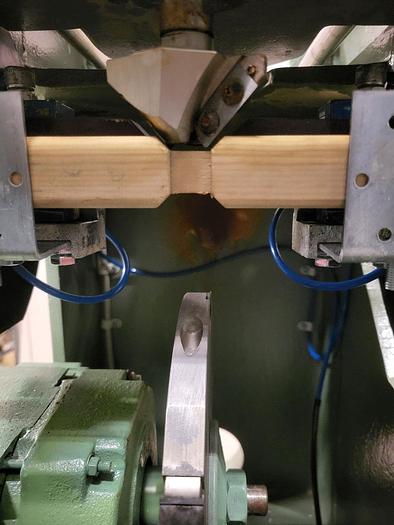

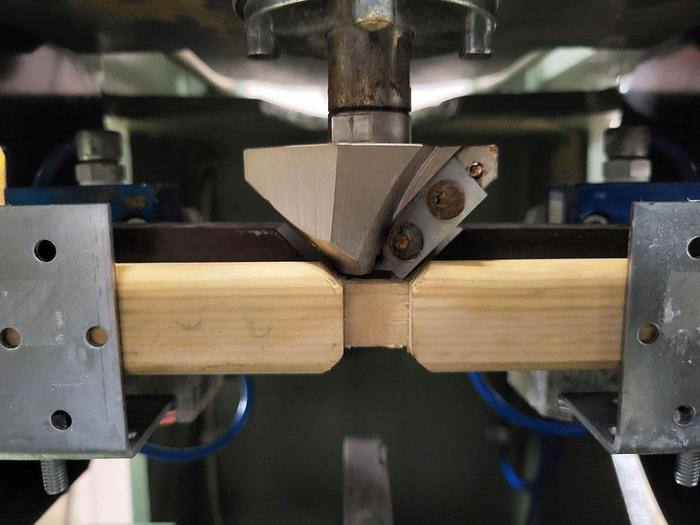

The profile cutter is designed for the rung width. The saw blades that perform the

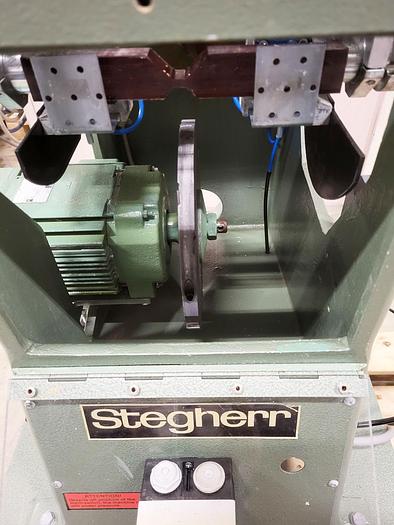

The saw blades that perform the flattening can be adjusted to the dimensions of the profile cutter using spacer rings.

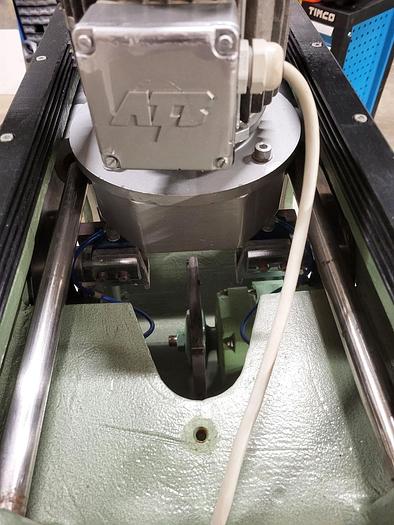

Upper cutter speed: 14,000 RPM

Saw / router bottom speed: 2,850 RPM

Saw blade diameter / cutter 250mm

Air connection 6 bar

Extraction 100mm diameter

max. workpiece width 53mm

max. workpiece depth 72mm

Time required per routing 15 sec.

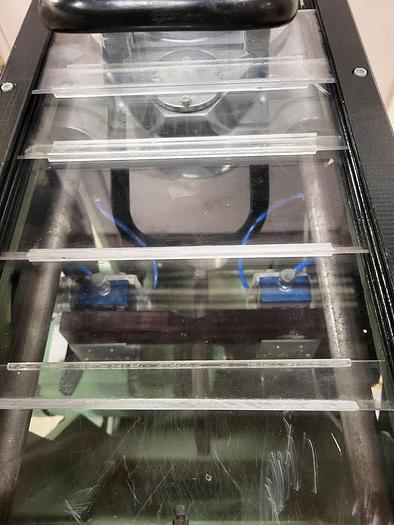

Fence with stop cam

Motor 2.2 KW, 380 V 50 Hz

Weight approx. 250 kg
