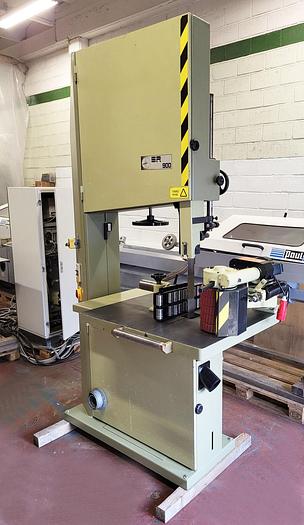

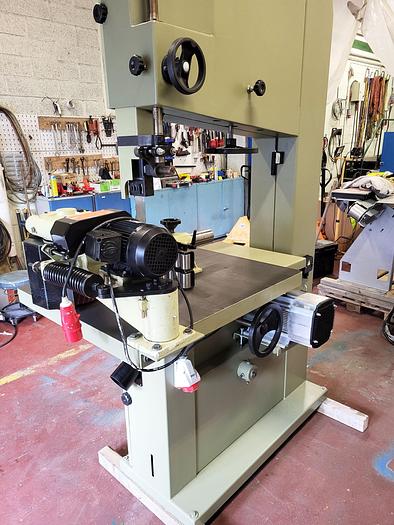

MEBER SR1 R1 900 Power Band RE-SAWS

MEBER SR1 R1 900 Power Band RE-SAWS

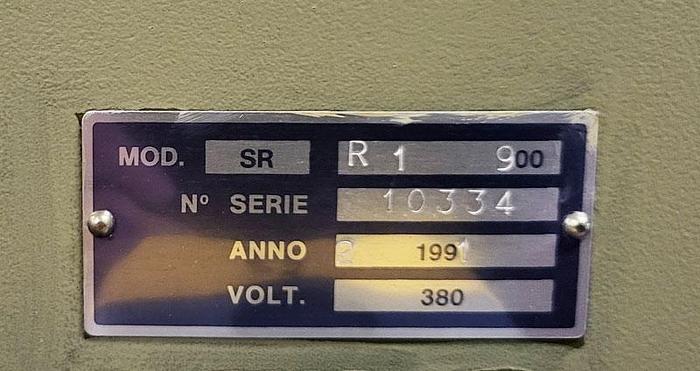

Year 1991

S/N 10334

manufacture: MEBER Italy

in good working condition from a vocational school.

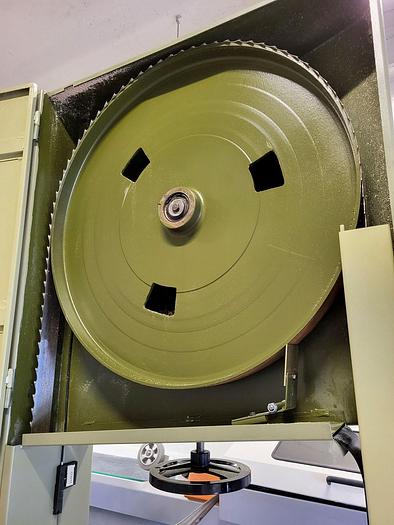

Flywheel diameter mm.    900

Working table sizes    810 x 970mm

Cutting capacity height mm. 500mm

max cutting width ( saw to body) 880mm

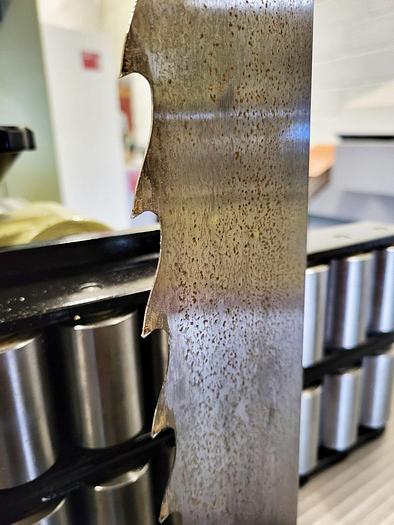

Blade width mm.    75mm

Flywheel R.P.M.    700

Length of blade, mm.    6230*

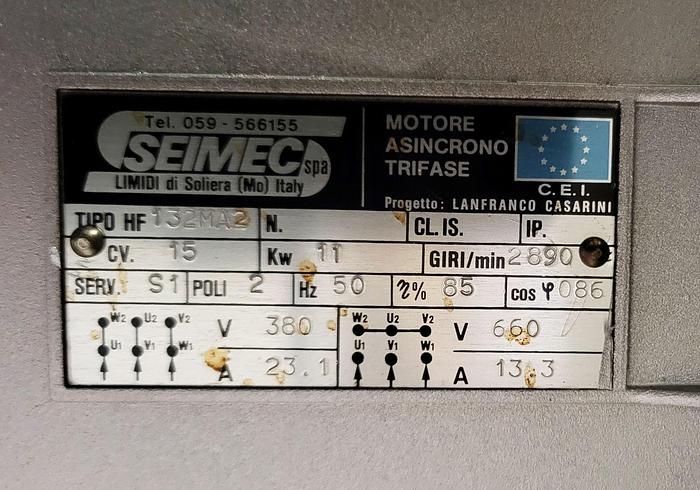

Motor power HP        11 kW

Saw blade speed    1450m/min

Net weight of machine Kg. 830

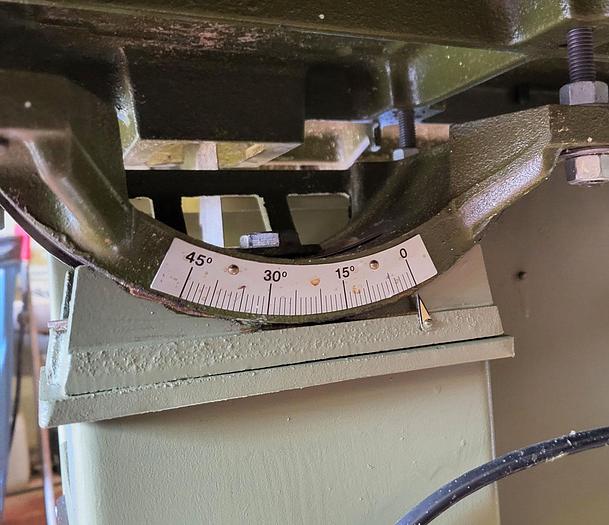

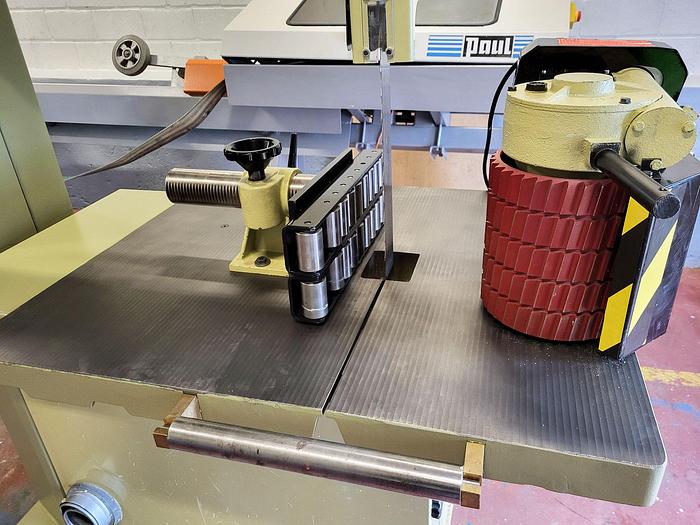

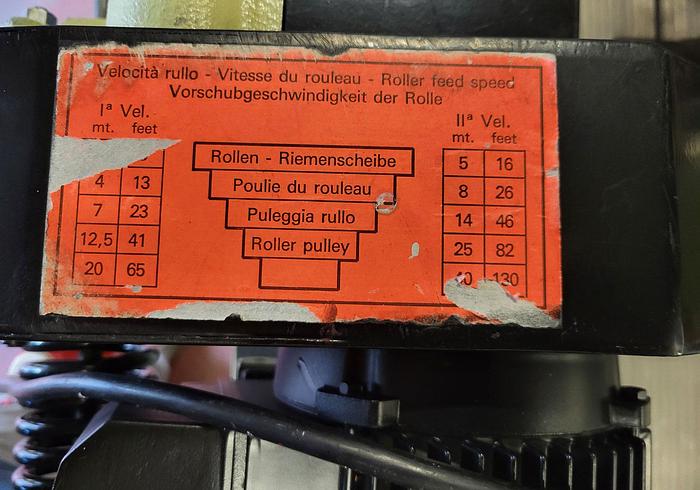

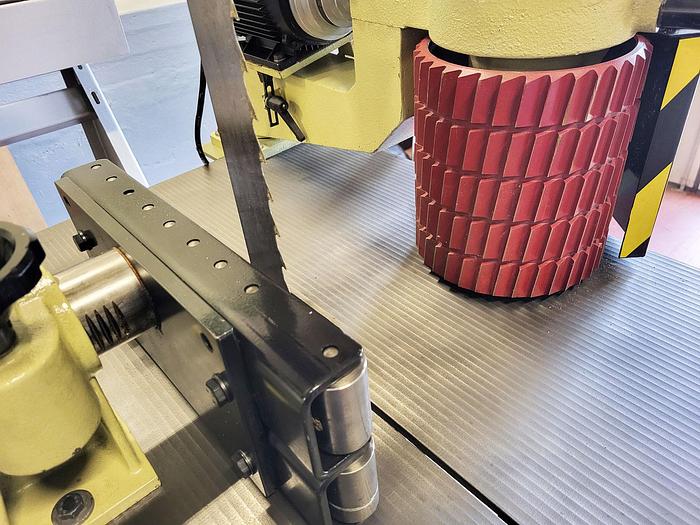

Maximum tilting table 0-45° feeding speed of the feeder: 5-40m/min

Motor: 0,4-0,7 HP

Weight of the feeder: 125 Kg

height of the steel roller: 235mm

The scrapers with brass blade allow a good cleaning of the flywheels surface obtaining the easy working of the blade.

An integral blade guard and two insert sawblade guides are supplied with the machine to guarantee the best driving of blade.
