Kara Master sawmill 2005

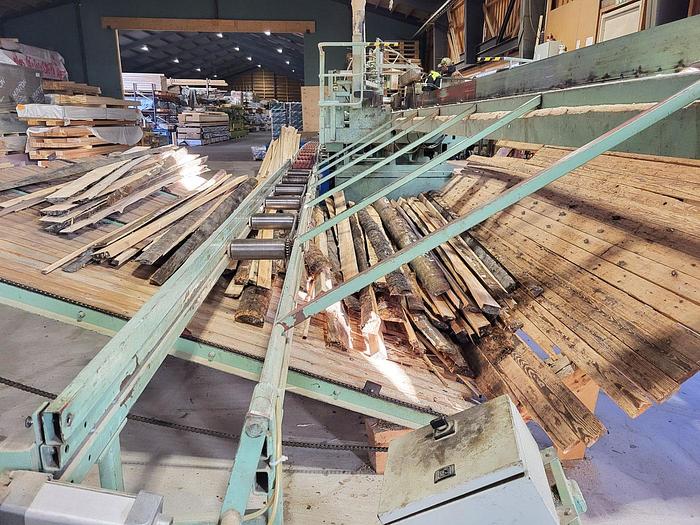

Complete Kara Master sawmill

Year of construction 2005

CE mark

The sawing line consists of:

1 Kara Master sawing machine with LS630 control system

Technical data of the KARA MASTER machine

Motor: 37kW / 1500 rpm

Hydraulic unit: 5.5kW / 1500 rpm / 50 Hz

Sliding table 9.5 m long, 0.7 m wide

Weight, kg approx. 4900 kg

Saw blade diameter 800-1200 mm

(with undercarriage 800...1100 mm)

Cutting height: 295...495 mm

Recommended speed for the saw blade diameter

800mm 1300r/min

900mm 1170r/min

950mm 1100r/min

1000mm 1050 rpm

1100mm 960r/min

1200mm 880 rpm

Diameter of the blade hole: 50 mm

015 mm, distance from blade hole 50 mm

9 m x 660 mm

Additional equipment Pump:

34 l/min, 150 bar (blade shaft speed 1100 rpm) 180 bar from the tractor hydraulics (only in mobile)

Stepless feed 0...130 m/min

Kara LS 360 control unit

Programmable up to 120 sizes in steps of 0.1 mm.

Programming addition during sawing, storage of the last dimension used.

9 Feed speed, m / min infinitely variable 0-130 m / min
