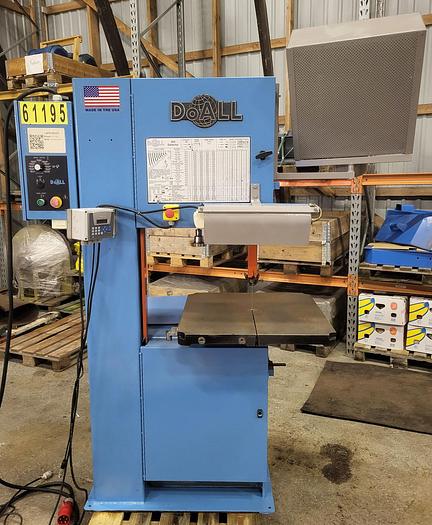

DoALL 2013-V3, 2013-V3 Vertical Contour Band Saw

DoALL 2013-V3, 2013-V3 Vertical Contour Band Saw

manufacture DoAll sawing Products U.S.

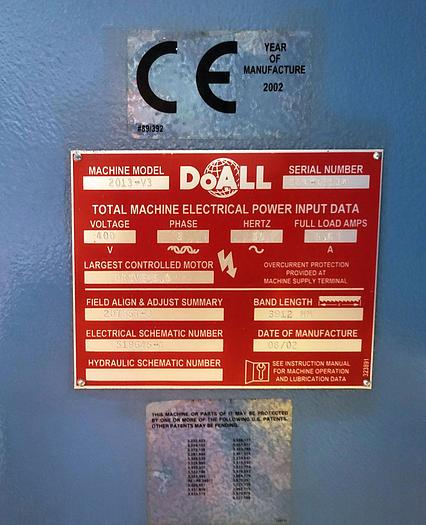

year of manufacture: 08/2002

S/N 526-02514

CE- marked

Variator drive

Max work height 330 mm

Max width to column 508 mm

Machine Capacity: w 20″ x w 13″ (508mm x 330mm)

These vertical machines are one of the most versatile machines available! Vertical contour saws for cutting aluminium, brass, copper, mild steels, tough tool steels, stainless steels and sheet metal as well as cut plastics and fibrous materials. Plus, they are available with a wide variety of Attachements that permit contour cutting, disc cutting and more.

The 2013-V2 is the same machine main structure and capacity and equipment as the 2013-V3. The only difference is the power of the motor:

2013-V3 : 2,2kW/3HP, 400V, 50 Hz

Standard equipment

   One set of high-speed, insert type guide-blocks for bands 3 through 13 mm

   One set of steel guide inserts for bands, 6, 10 and 13 mm

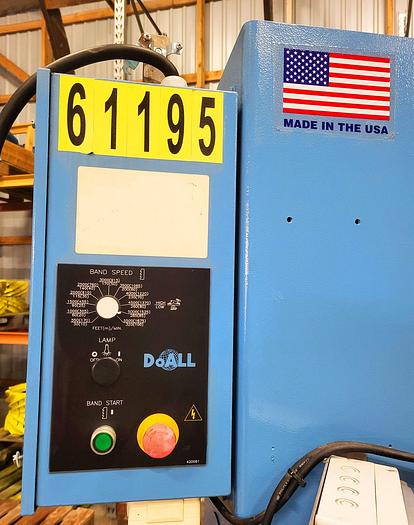

   Band speed indicator

   Removable chip pan

   Band tension indicator

   Chip blower (requires plant air)

   Post elevating handwheel

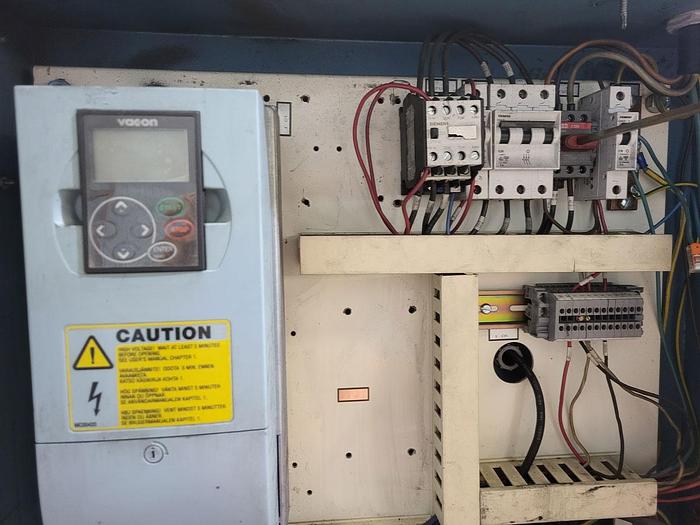

   Variable speed AC drive (control speeds, soft start and dynamic brake functions)

   Band door interlocks

   Dual range transmission

   Transmission oil

   One Bi-Metal band saw blade

   Instruction and parts manual

   Max work height: 330 mm

   Max width to column: 508 mm

   Speed range low: 10 - 100 m/min.

   Speed range high: 170 - 1.675 m/min.

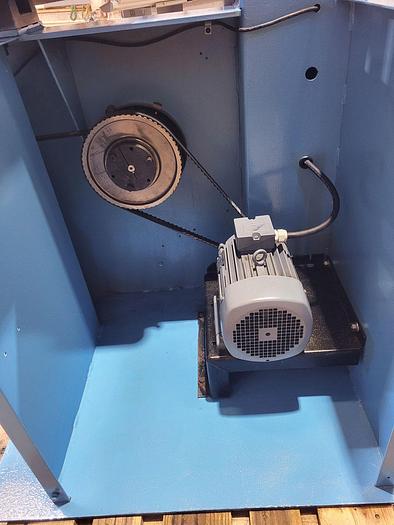

   Band drive motor: 3 HP (2013-V3)

   Dimensions (L x W x H): 895 x 1399 x 2065 mm

   Weight: 570 kg
