2007 Graule GRAULE end milling machines type AKF 6/250

GRAULE end milling machines type AKF 6/250

year of construction 23007

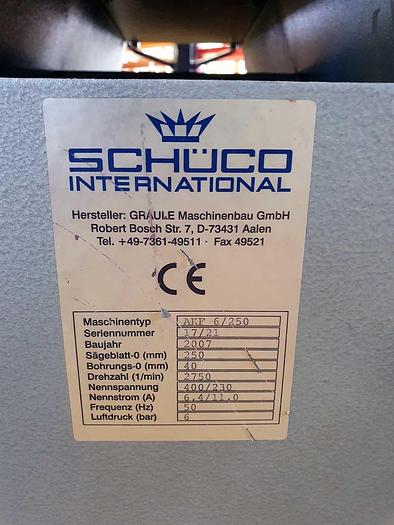

SN 17/21

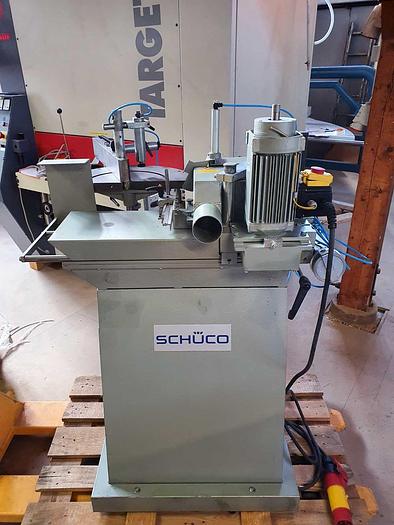

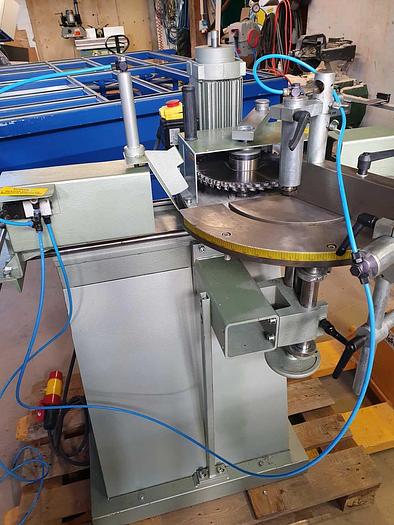

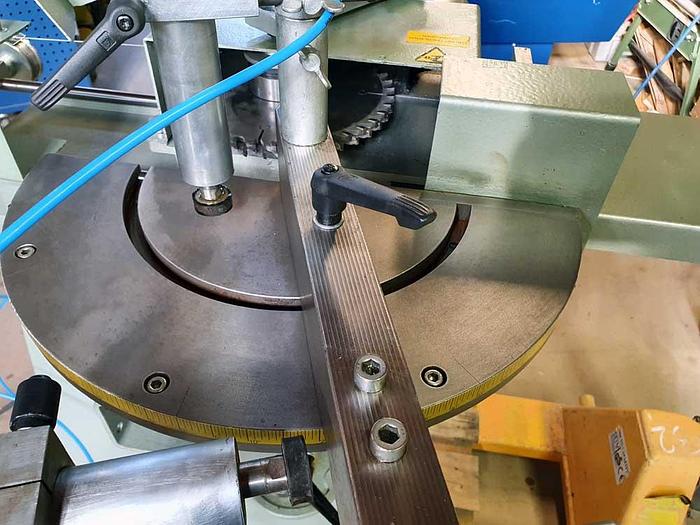

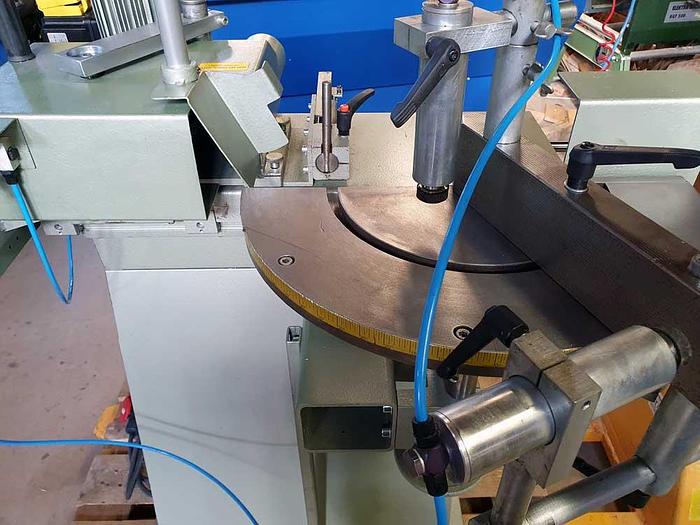

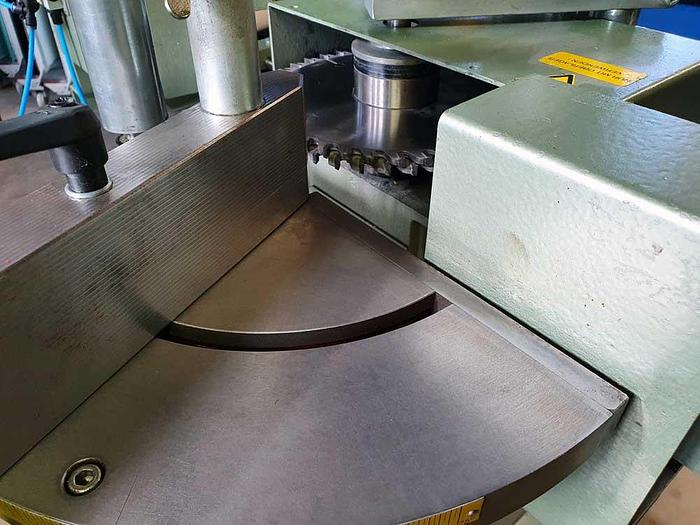

End milling machine type AKF 6 for right-angled notching and in mitre area up to approx. 20°.

The working stroke of the trimming unit can be adjusted to the profile width in seconds, thus considerably shortening the work sequence

High cutting speed due to high rotational speed (approx. 4000 rpm) and large cutter diameter

Stable grey cast iron construction

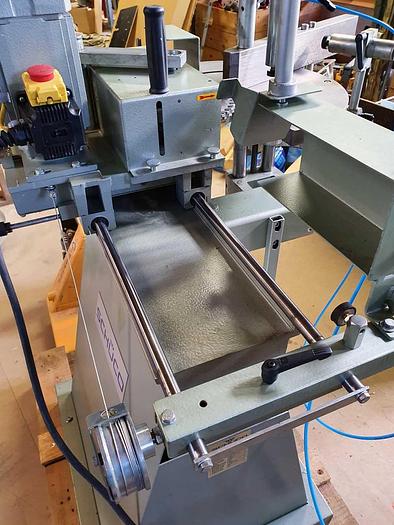

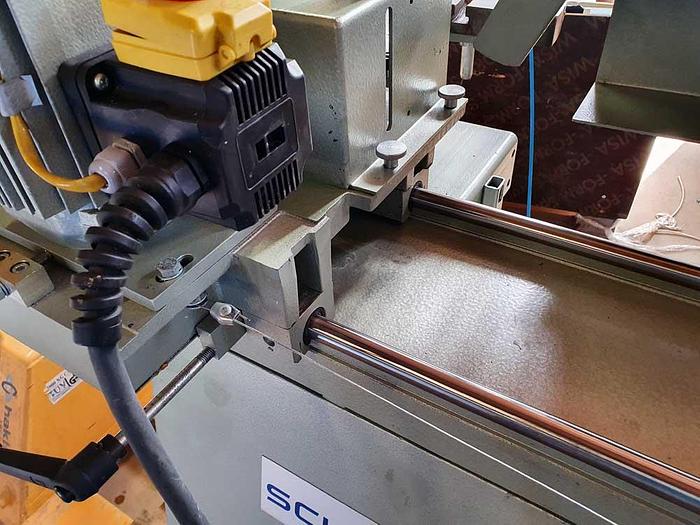

Precise ball bushing guidance of the tool slide on hardened and ground steel shafts

Manual milling feed

The cutter mounting shaft is supported by ball bearings on both sides, thus ensuring smooth and vibration-free milling

Three-phase brake motor Motor 400 V / 3.0 kW 4

Speed 4500 rpm

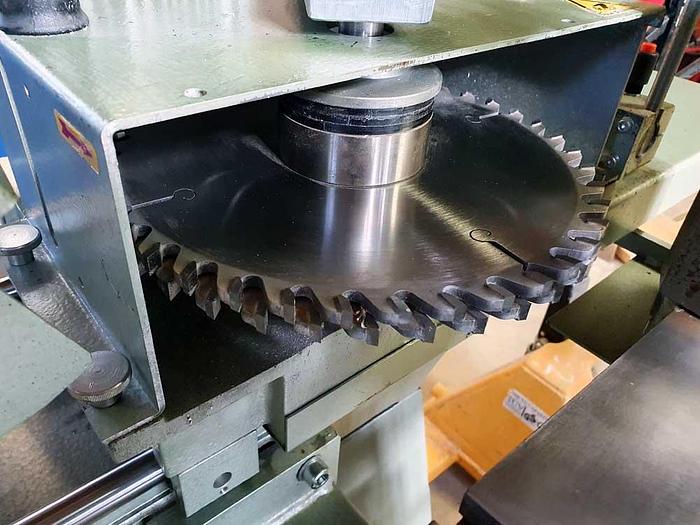

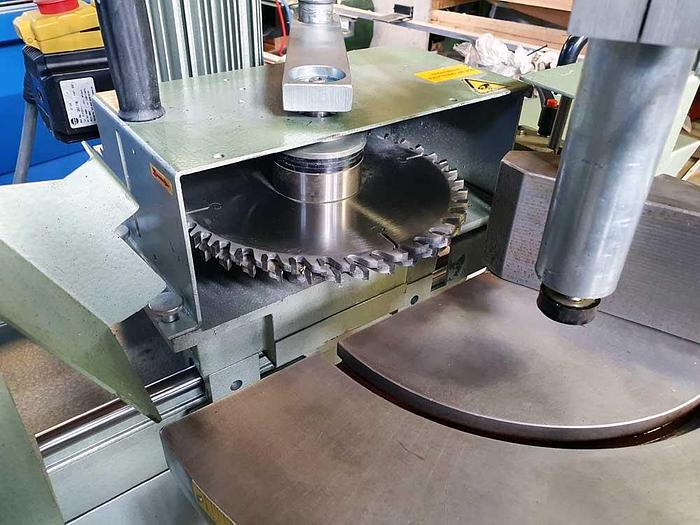

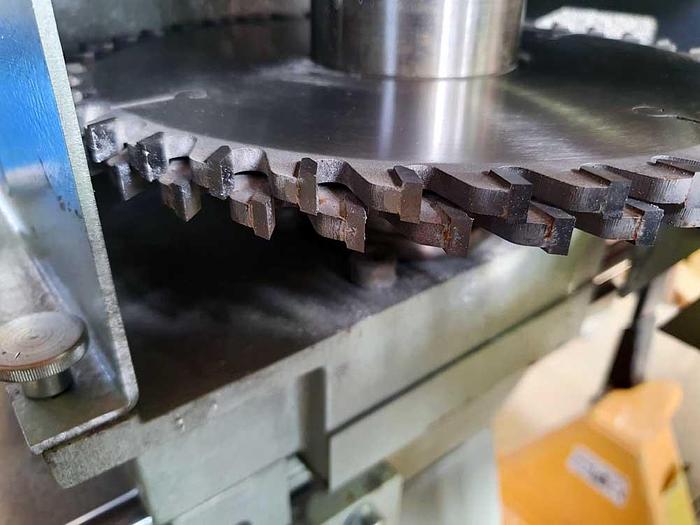

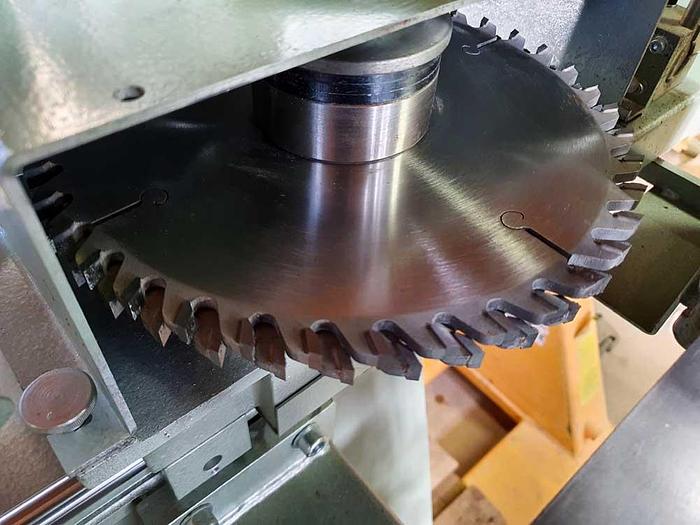

Cutter-Ø 250 mm

Cutter mounting shaft-Ø 40 mm

milling spindle length 100 or 200 mm

milling width 305 mm

milling depth 80 mm

Suction socket-Ø 80 mm

weight 210 kg

CE certified
