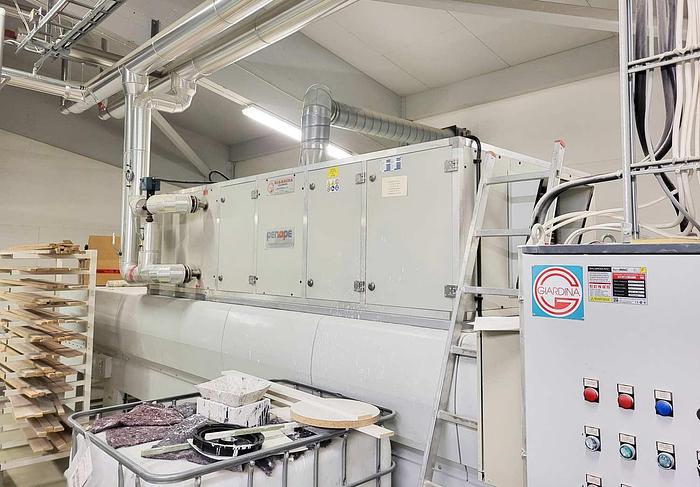

Giardian Flash OFF paint drying system and GP-Jet jet dryer+ IRM

Giardian Flash OFF paint drying system and GP-Jet jet dryer+ IRM

Year of construction 2007

Manufacturer Giardiana Italy

Total length 15m

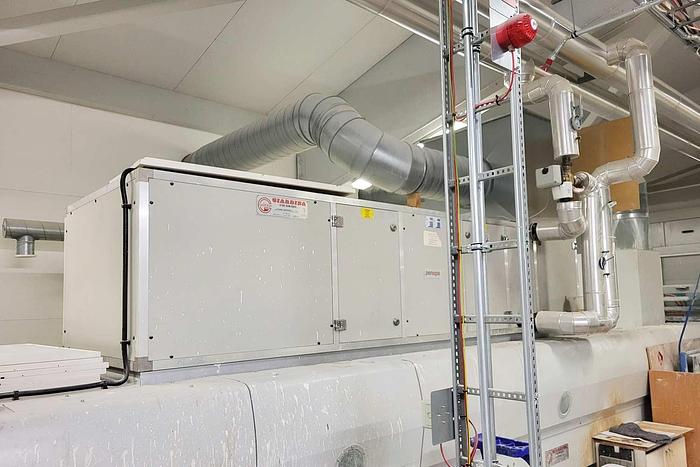

1.POS GIARDINA - FLASH OFF - EVAPORATION TUNNEL, model AC 7

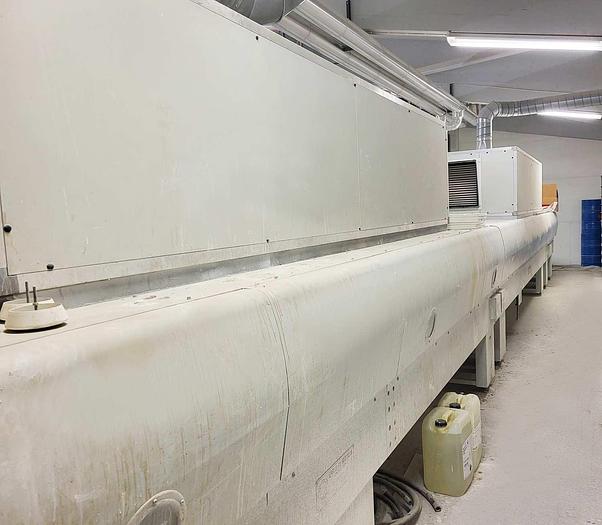

Evaporation tunnel, total length 7000 mm

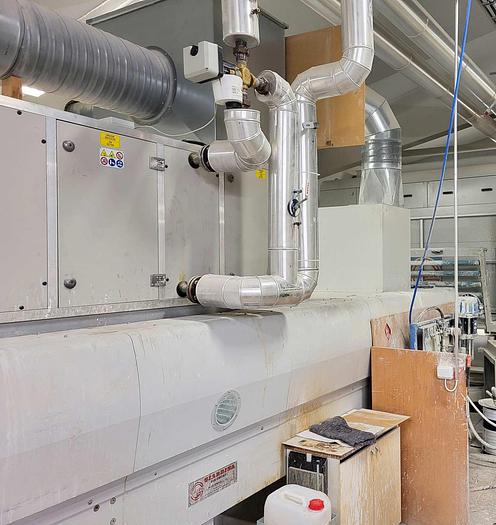

Air intake from inside the factory through filters

Air heating with copper/aluminium heating element

Air blows against the feed direction of the workpiece

Removal of soaking gases from the oven by overpressurising the circulating air

Controlled ventilation system

Automatic temperature control system

Internal width of the machine 1380 mm

Effective width of the machine 1320 mm

Piece length min. 300 mm

Piece thickness max. 90 mm

Bonnet length 6000 mm, width 1810 mm

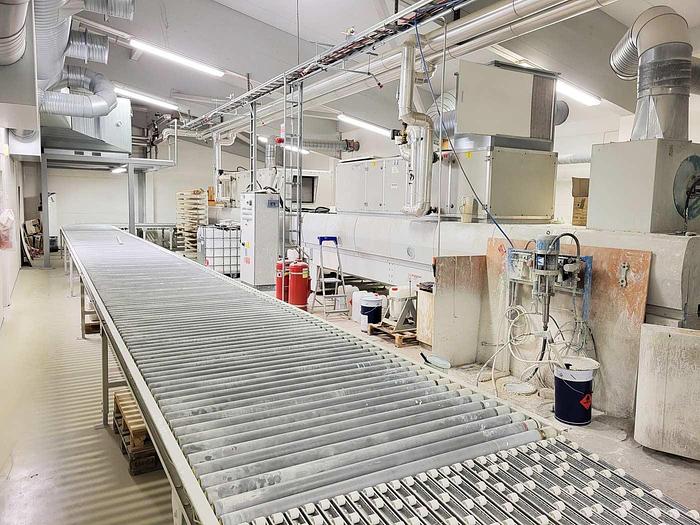

Conveyor length 6000 mm

Infinitely variable feed speed

Oven intake air volume 8000 m3/h

Oven exhaust air volume 6000 m3/h

Outlet size 2 x 240 x 240 mm

Inlet fan 3.0 kW

Exhaust fan 1.5 kW

Temperature rise in the oven max. 40 °C compared to the hall temperature

Total output 120,000 kcal

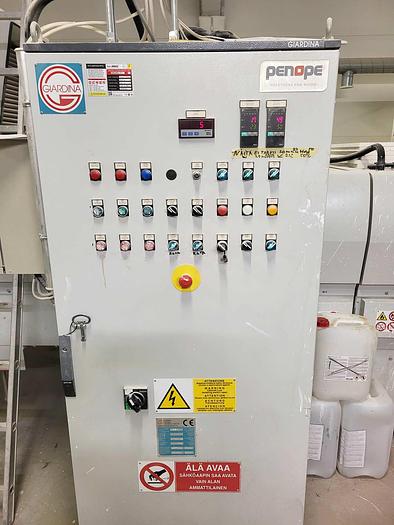

IP 55-protected electrical appliances (electrical appliances, switches, fuses, remote switch and thermal protection are located in the control cabinet in a separate control cabinet - cable length 8 m)

Control switches are low-voltage switches

The main part of the electrical equipment is Telemecanique

EEx-d protected motors

2. POS GIARDINA - GP JET - JET AIR-8 nozzle blowing (DRY) + IRM

Nozzle blowing tunnel, total length 8000 mm, width

Air intake from inside the factory through filter

Air heating with copper/aluminium heating element

Blowing air onto the surface of the workpiece through cone nozzles. Removal of soaking gases from the furnace by overpressurising the circulating air

Controlled ventilation system

Electronic temperature control of the air blown by the nozzles and a servo-controlled temperature control system

Internal width of the machine 1380 mm

Useful width of the machine 1320 mm Unit length min. 300

IP 55-protected electrical appliances (electrical appliances such as remote switches and thermal protection are located in the control cabinet in a separate control cabinet - cable length 8 m)

Control switches are low-voltage switches

The main part of the electrical equipment is Telemecanique

Conveying mortar 1.5 KV

-JET AIR-8 nozzle blowing (DRY) + IRM

Nozzle blowing tunnel, bonnet length 8000 mm

Air intake from inside the factory through filter

Air heating with copper/aluminium heating element

Air is blown onto the surface of the workpiece through cone-shaped nozzles

Removal of soaking gases from the oven by overpressurising the circulating air

Controlled ventilation system

Electronic temperature control of the air blown by the nozzles and a servo-controlled temperature control system

Internal width of the machine 1380 mm

Useful width of the machine 1320 mm

Piece length min. 300 mm

Piece thickness max. 90 mm
