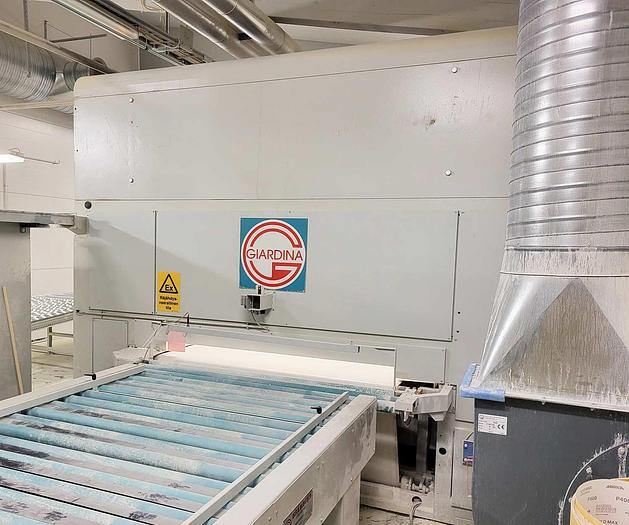

GIARDINA CNC-controlled automatic sprayer, DUALTECH 401-S-DRY

GIARDINA CNC-controlled automatic sprayer, DUALTECH 401-S-DRY

Year 2007

Manufacture: Giardina Italy

The high-quality automatic sprayer from GIARDINA is manufactured with the versatile needs of users (painters, varnishers, stainers, etc.) in mind.

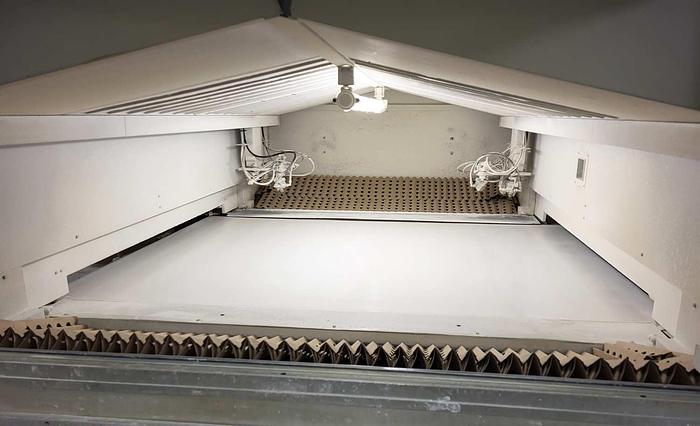

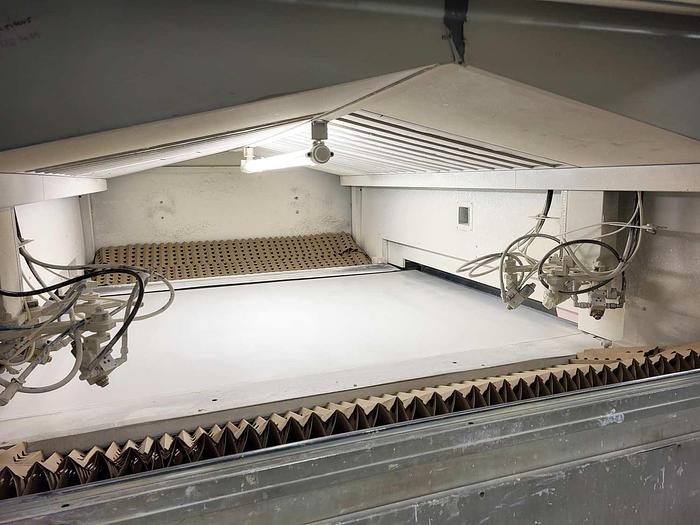

The efficient automatic machine consists of a self-cleaning carpet conveyor,

a fast-moving traverse, CNC control units and air filtration/circulation systems.

The main advantages of the machine are:. Reliable, patented collection/recycling system for small and medium sized materials,

equipped with a versatile and fast painting system

- with two transverse devices

- Wide carpet for maximum recovery (1800 mm). Quick change system for synthetic and reinforced carpet

- the distance between the traverses is approx. 1800 mm

- low need for daily cleaning and maintenance

- Scrape off colour residues from the carpet, even without solvent

- The usable working width of the machine is 1300 mm

- STAR linear guides and servo control for the traverse

The self-cleaning lining mat equipment consists of reinforcing structures made of a 1800 mm wide plastic mat (double-layer nylon structure + steel reinforcements).

The surface layer of the carpet is coated with a solvent-resistant material that also makes the carpet

electrostatically free. The mat has guiding elements (vulcanised rubber) to ensure that it stays securely in place. Patented mat

On the infeed side of the machine there is a short roller conveyor on which the piece reading device is installed.

(i.e. the machine's own conveyor belt is a so-called shortened version and the ‘intermediate conveyor belt’ between the sander and the sprayer has been extended accordingly).

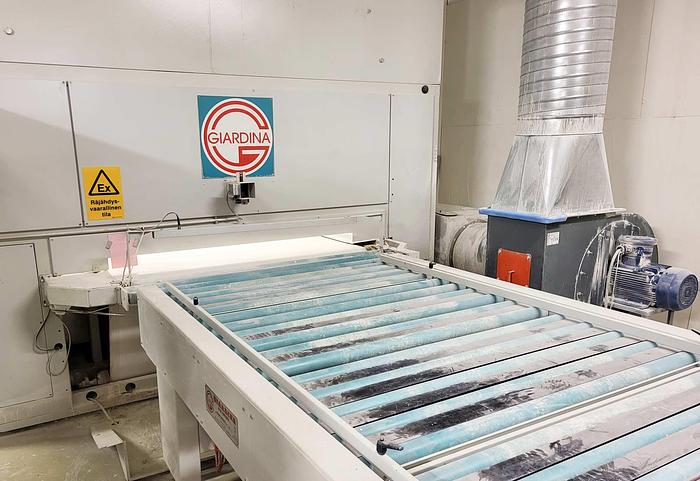

On the output side of the machine there is a 1300 mm long roller conveyor with a rotating part for cleaning the scrapers.

The machine is designed for water-based and solvent-based PK substances.

Technical description:

Working width max. 1300 mm

the width of the working mat 1800 mm

min. heel length 300 mm

piece thickness max. 50 mm

Input speed 2-8 m/min

Travelling speed 0-120 m/min

Intake air outlet 350 x 1520 mm

Supply air volume 12000 m3/h

Exhaust air opening 450 x 450 mm

Exhaust air volume 12000 m3/h

Connected load 14.5 kW

compressed air requirement 2000/min

Machine length 4918 mm

machine width 4150 mm or 4720 mm

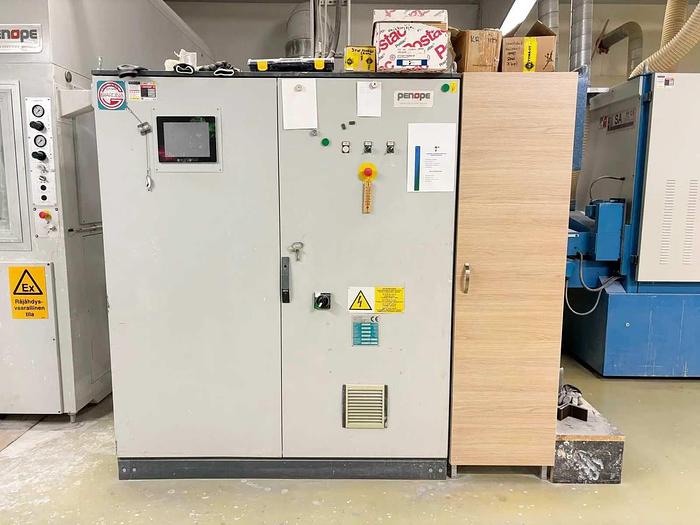

Electrical devices

Protection class IP 55

Safety level

According to CE standards

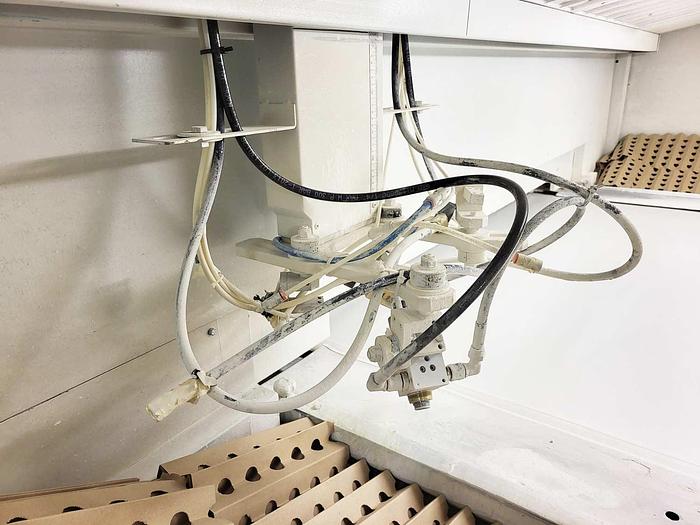

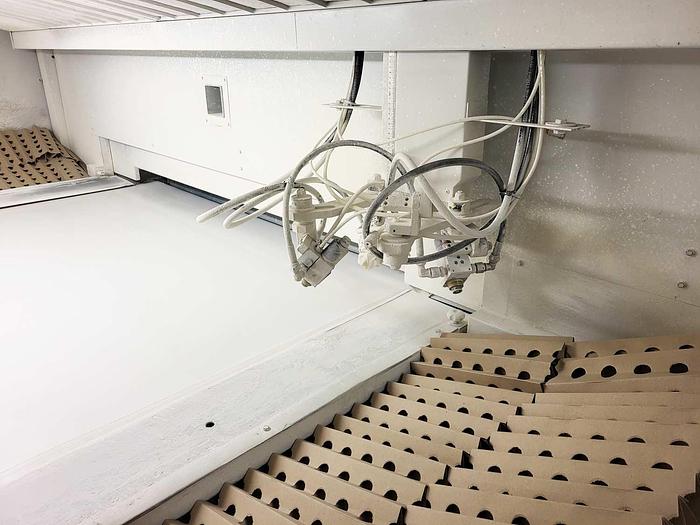

PK agent circuits 2 pieces (for 4 + 4 guns) for solvent-based agents

Protection class IP 55

Safety level

According to CE standards

Other equipment

LEXAN - transparent cover on the output conveyor of the machine

Eexd-protected motors for fans

Equipment for adjusting the injector inclination (manual)

Equipment for adjusting the height of the injection unit (manual)

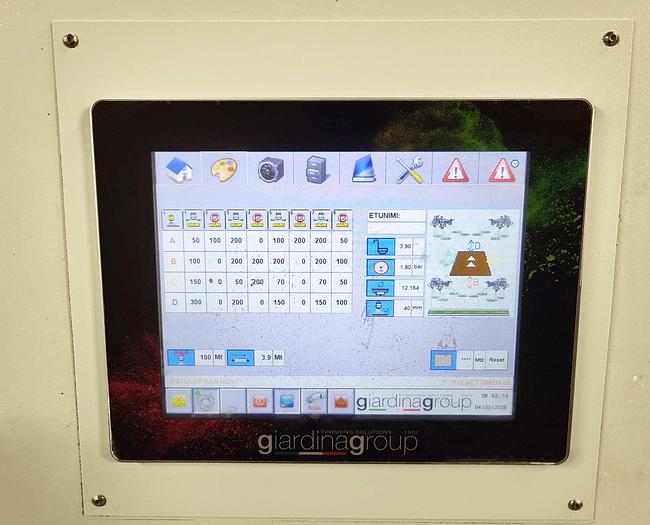

Machine control with CNC control unit and TELEMECANIQUE TSX57203-m-Premium reading bar

Presostat equipment for monitoring the condition of the machine's filters and adjusting the speed of the exhaust fan using an inverter

2nd spray circuit (e.g. for a 4+4 gun, with one circuit containing paints and the other containing lacquers)

3rd spraying circuit (e.g. 4+4+4 for a gun, where one circuit contains paints and the second paints and the third stains)

Presostat equipment for monitoring the condition of the machine's filters and adjusting the speed of the exhaust fan using an inverter

DUAL FAST quick-change devices for gun holders

enables guns to be washed outside the machine made for 22 guns
