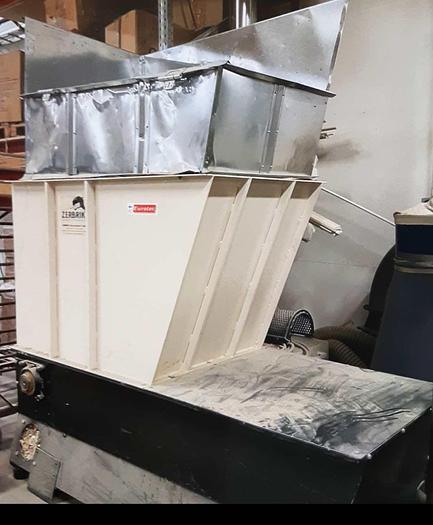

Zerbrik shredder series PZ 83-1

Zerbrik shredder series PZ 83-1

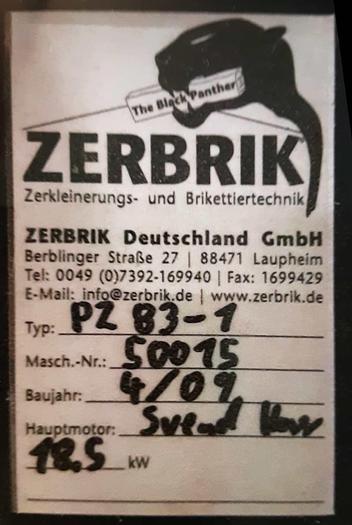

Year of construction 2009

S/N 50015

Manufacturer Zerbrik Deutschland GmbH

approx. 2.000 operating hours

Hopper opening 83 x 100cm

Hopper volume 1m3

Rotor diameter 360mm

Rotor speed 70-90 rpm

40 cutting blades

18.5 kw main motor

1500 kg

Shredding of hardwood, softwood, chipboard, MDF, cardboard, plastics and other materials

and other materials

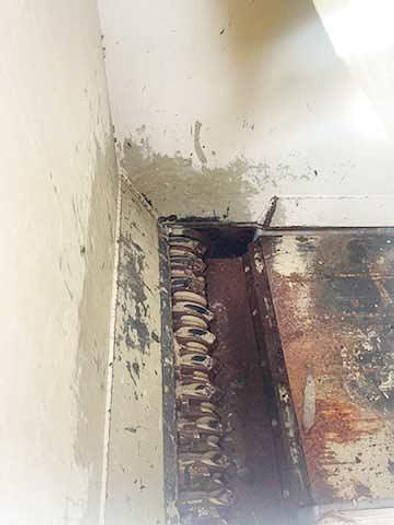

Rotor

The rotor is made of wear-resistant solid material into which the contours are turned.

are turned in. The blade carriers are welded into it. Each contour contains two

with a cutting tool in each contour, resulting in greater and more even

This results in greater and more even cutting across the entire width of the rotor. This protects the machine

and bearings.

Cutting tools

The knives are available in different versions. Depending on the wood chips

there are full square knives and concave knives. Depending on the version, they can be used 4 or

8-fold usable.

Perforated sieve

The perforated screen determines the size of the wood chips. This is essentially dependent on

processing, e.g. briquetting, wood chip heating, etc.

etc.

Turbo coupling

A turbo clutch is also installed in larger electric drives.

This ensures a smooth start-up and any power peaks that occur are equalised.

are equalised
