2000 Masterwood Italy Masterwood CNC for door and window production Woodmaster ATLAS

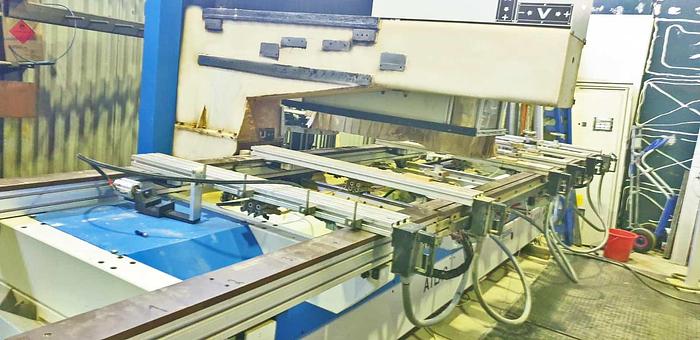

Masterwood CNC machining center for door and window production

Type Woodmaster ATLAS

Year of manufacture 2000

SN 00120018

for machining of solid wood and panel material etc.

Working strokes of the axes:

X axis 3900mm

Y axis 1785mm

Z-axis 630mm

Working range

X axis 3500mm

Y axis 1210mm

Z-axis 210mm

Max speed of axes 60-50-20m/min

6 support brackets

Workpiece clamping device

Electric main spindle with ISO 30 mounting 6,8 kW 24.000rpm

Sawing unit integrated in the working unit

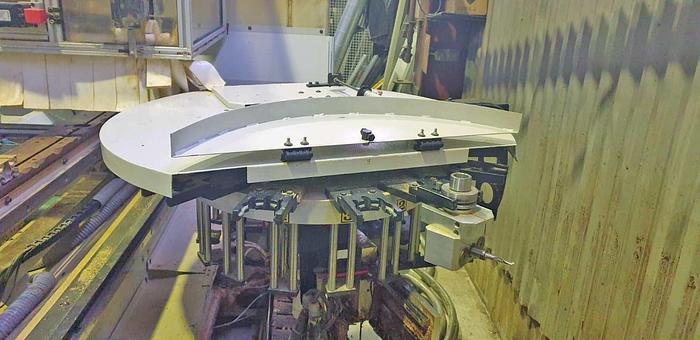

Automatic tool change 18 positions

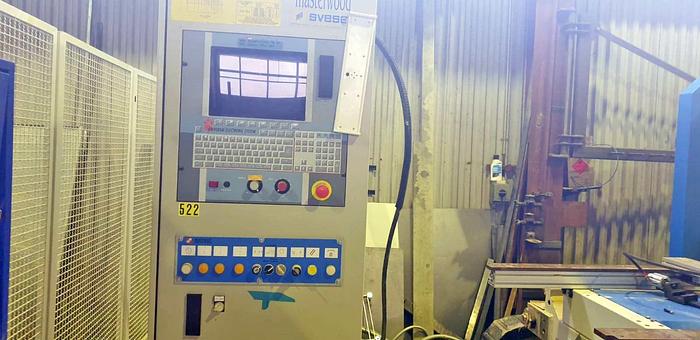

Numerical control SINCRO with industrial PC and keyboard

Safety tread mats

Vacuum pump

Total power required 27 kW

Operating pressure 6-7 atm

Compressed air consumption per cycle 200-300Nl/min

Suction speed 25-30m/sec

Air consumption 5000m3/h

400 V/ 50 Hz

Weight 4500 Kg

Technical specifications subject to change
