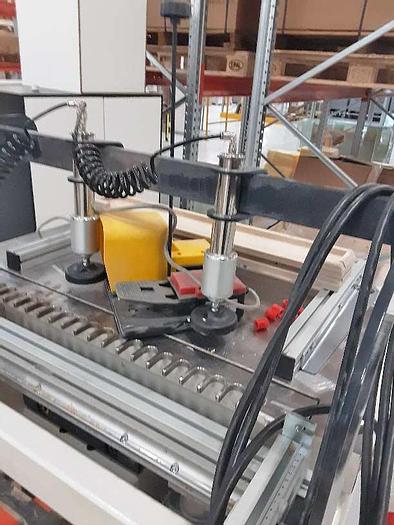

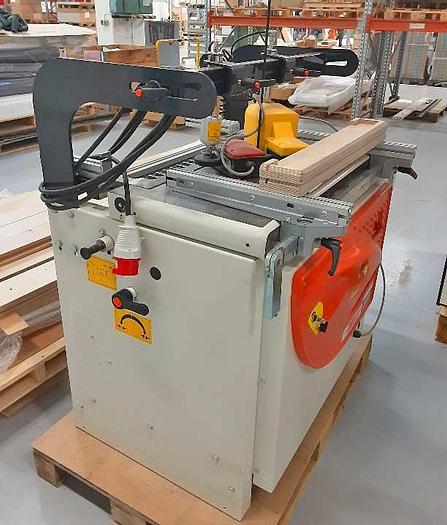

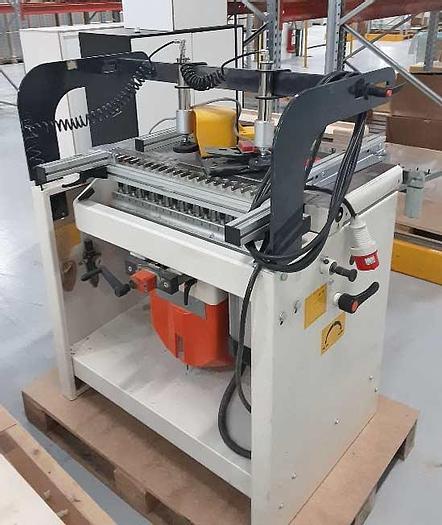

2008 VITAP Italy VITAP boring machine ALFA 21

VITAP boring machine ALFA 21

year 2008

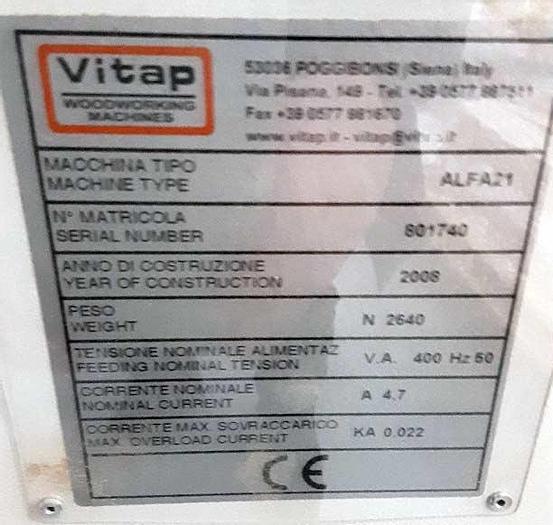

S/N 801740

manufacture VITAP Woodworking Italy

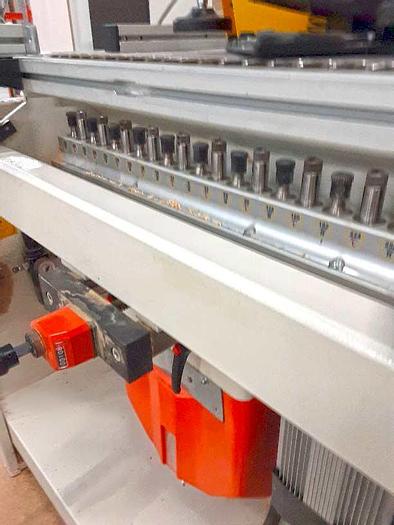

Boring unit with 21 spindle head

quick change spindles;

pneumatic cylinder for horizontal/vertical positioning of the boring group (and 45°)

front/top caliber to obtain the same boring measure between horizontal and vertical position;

2 safety clamps inclined 4 degrees;

Tilting of the piercing unit 0-90°

height regulation of the boring group by mechanical digital position indicator;

automatic vertical-horizontal depth difference device (10 MMS)

drilling speed adjustment from the panel control;

strengthened steel structures for tilting of the boring group

1 motor HP 2,5

start/stop electro-pneumatic circuit by foot pedal.

400 V, 50 Hz

264 Kg

CE- marked

technical specification under subject for correction
