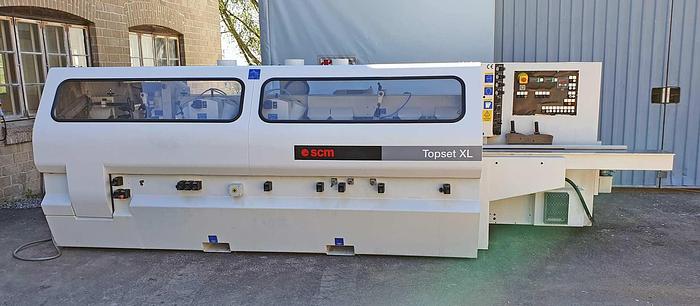

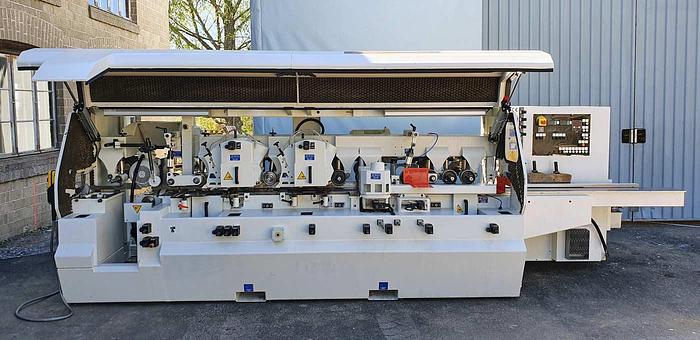

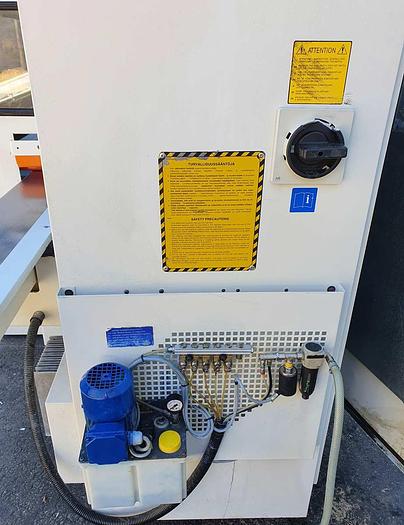

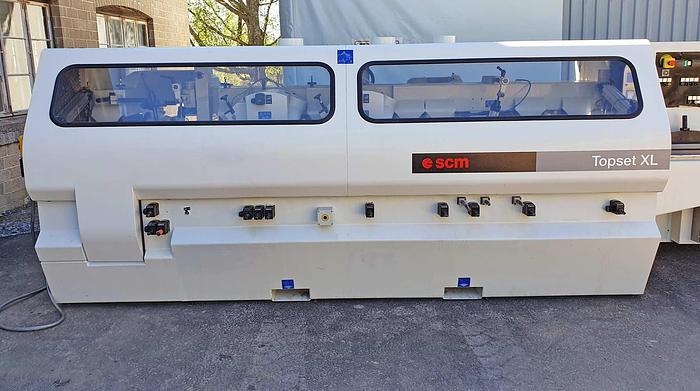

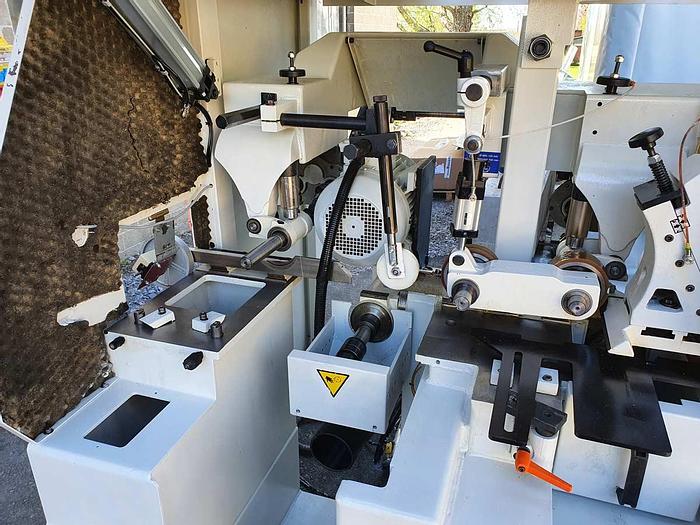

SCM Automatic Throughfeed moulder SCM TOPSET XL, 7 heads, year 2001

Automatic Throughfeed moulder SCM TOPSET XL, 7 heads

year 2001

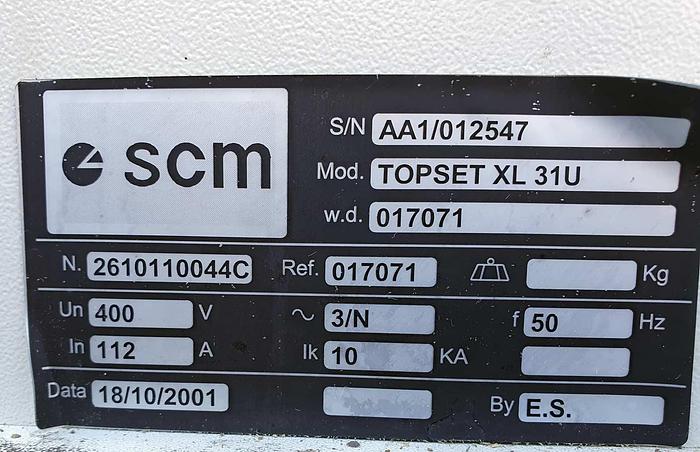

Version Topset XL 31U

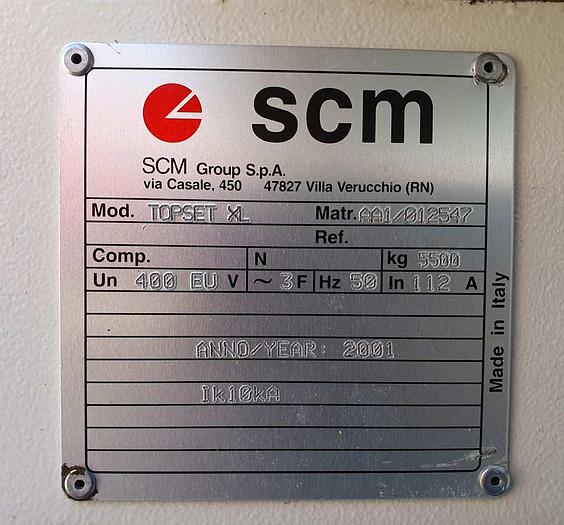

S/N AA1/012547

8700 operating hours

Heavy duty monoblock steel construction

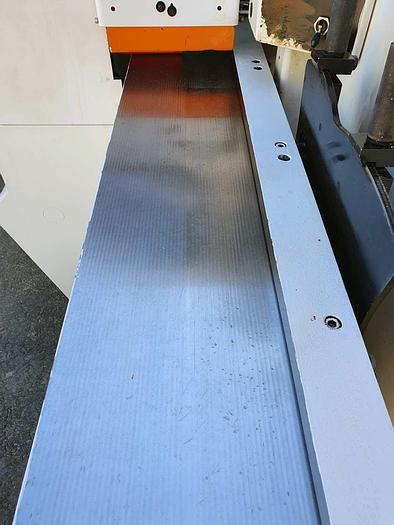

Rapid SET UP system working tables with micrometric Control

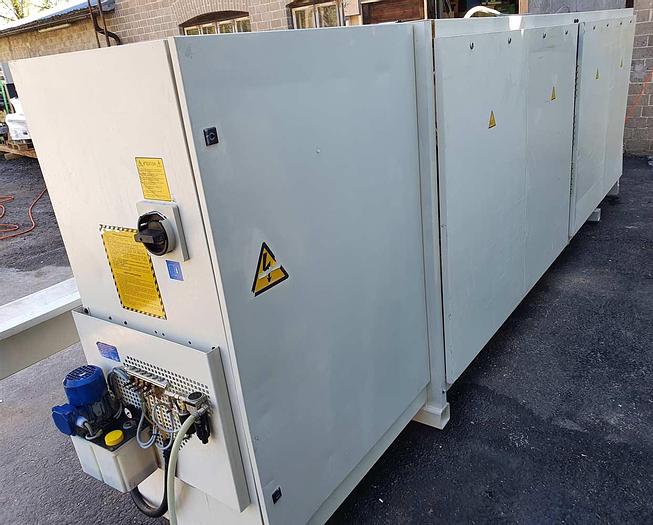

Integral protective enclosure

Max. width of the workpiece (finished part) 240 mm

Minimum width (finished part) 25 mm

Max. height of workpieces (finished part) 120 mm

Minimum height of the insert (finished part) - 10 mm

Minimum length of a single piece 640 mm

Feed rate - 6-36m/min ( inverter controlled)

Spindle speed - 6000 RPM

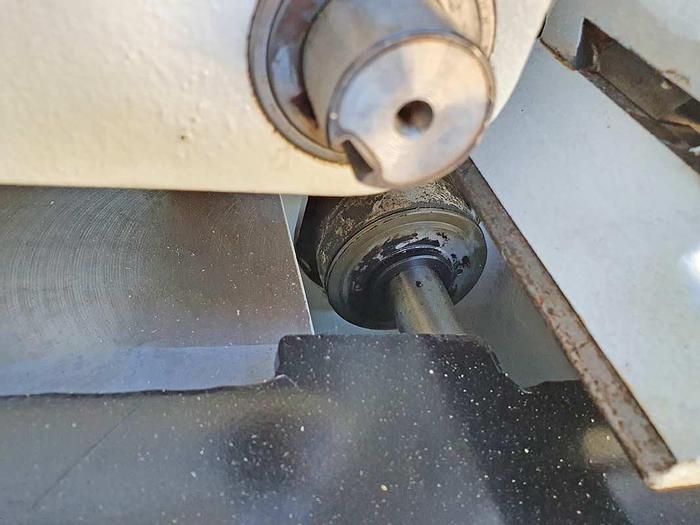

Shaft blade size - 40 mm

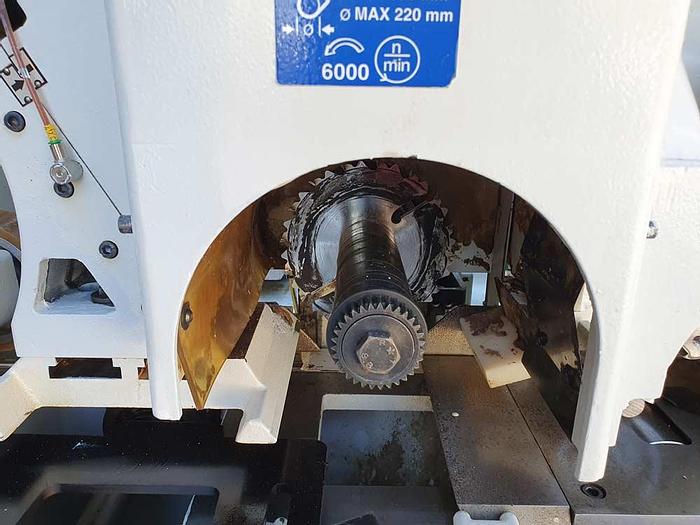

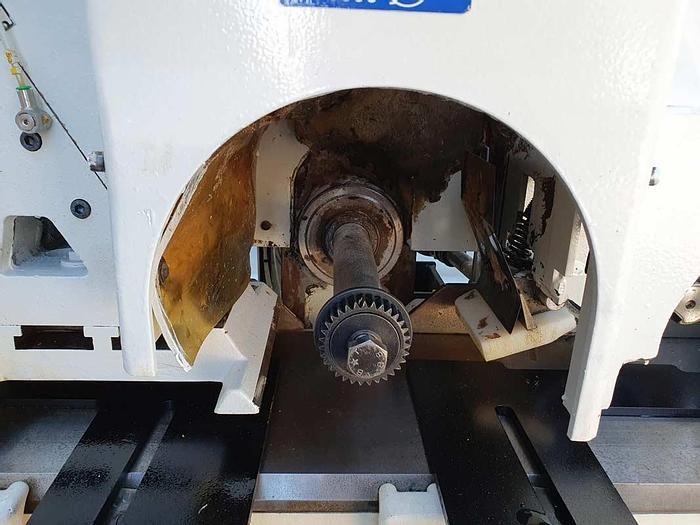

Operating length of vertical shafts 140 mm

Operating length of horizontal axes 250 mm

Overall axle length 240 mm

Axial adjustment vertical spindles 0 to 80 mm

Axial adjustment horizontal spindles 0-45 mm

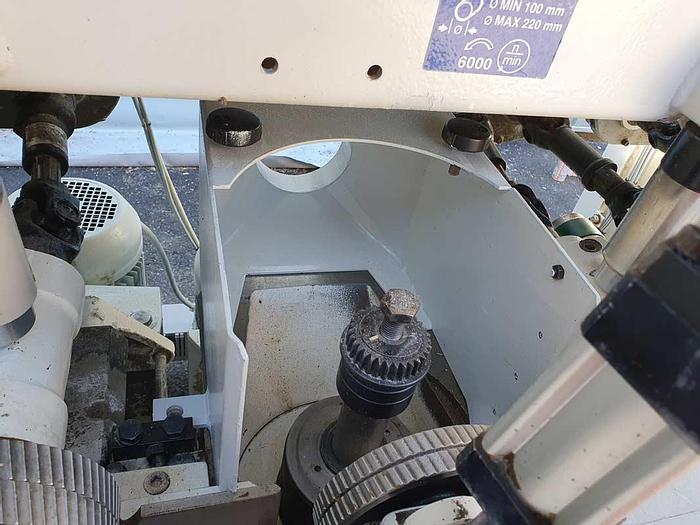

Minimum / Maximum dimension of planer tool 120 / 140mm

Minimum / Maximum dimension of planer tool 100/ 220mm

Minimum jaw gauge of the blades 120-140 mm

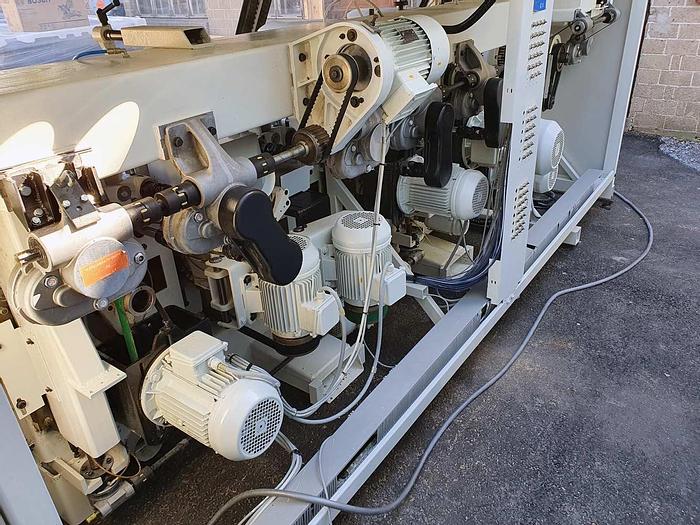

Spindle support shaft motor power 4 kW

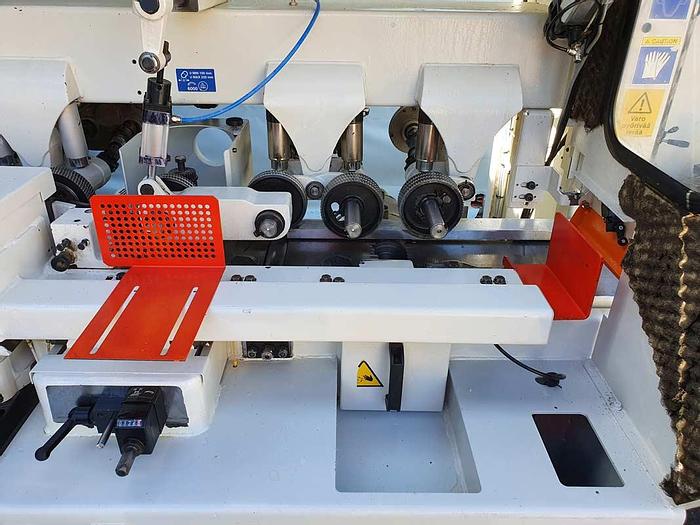

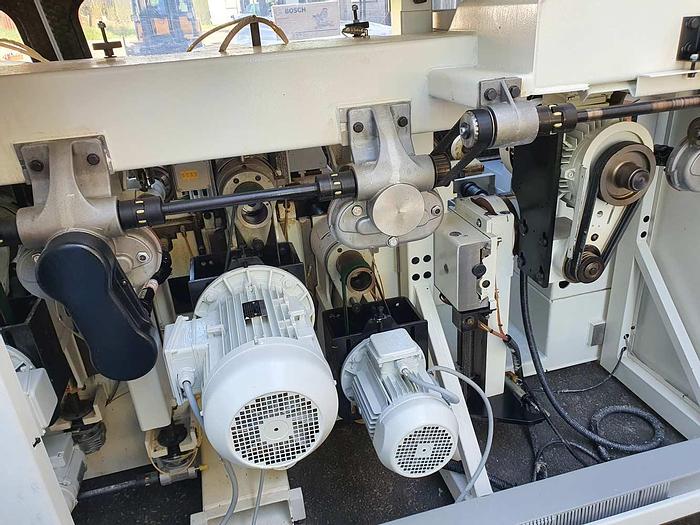

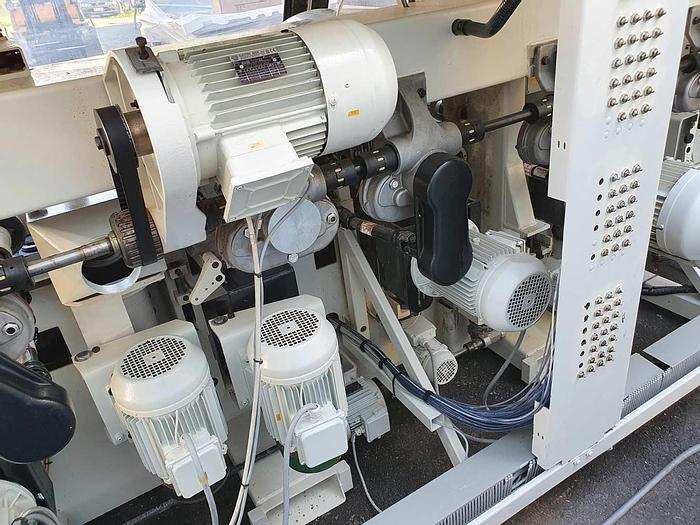

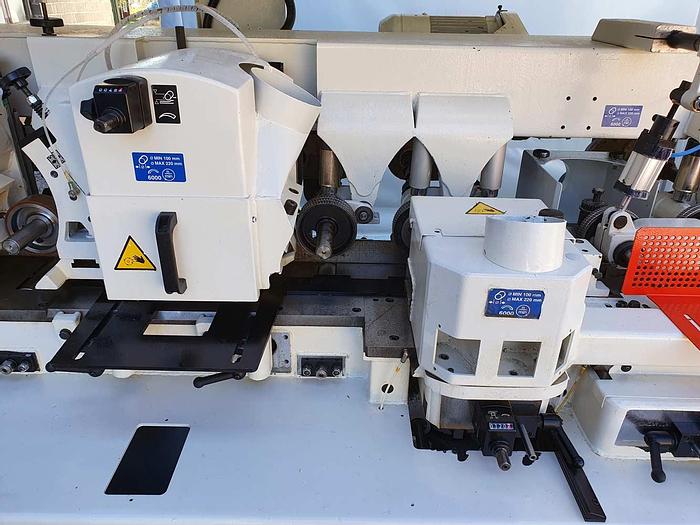

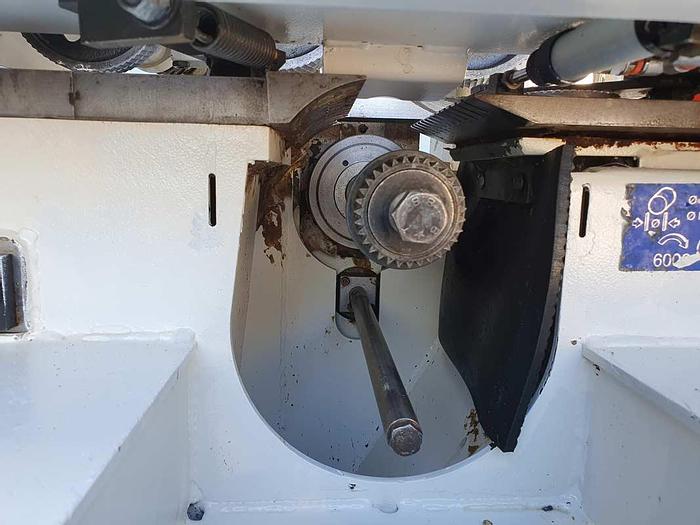

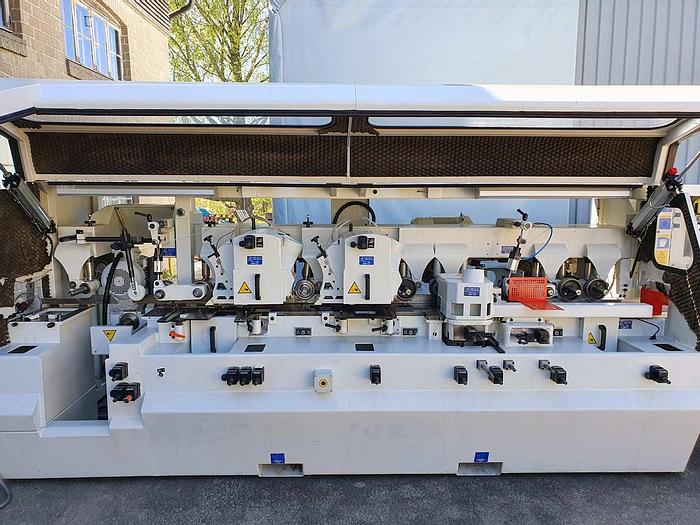

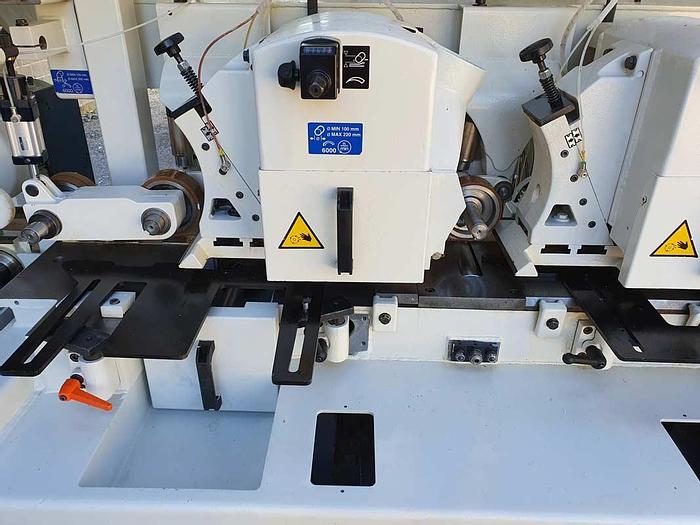

spindle configuration:

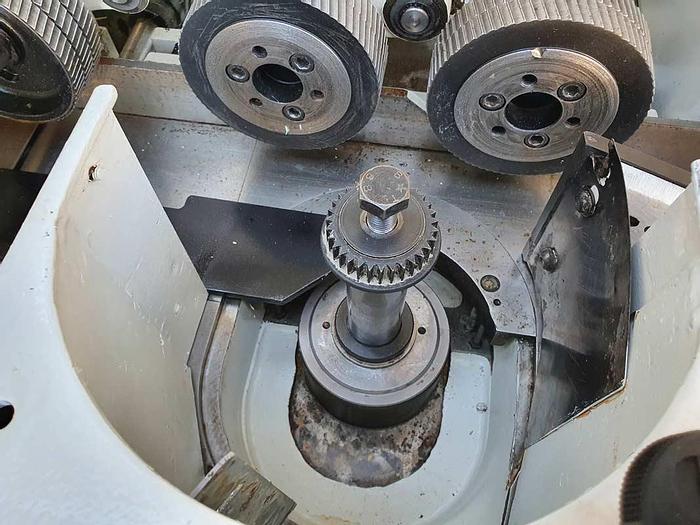

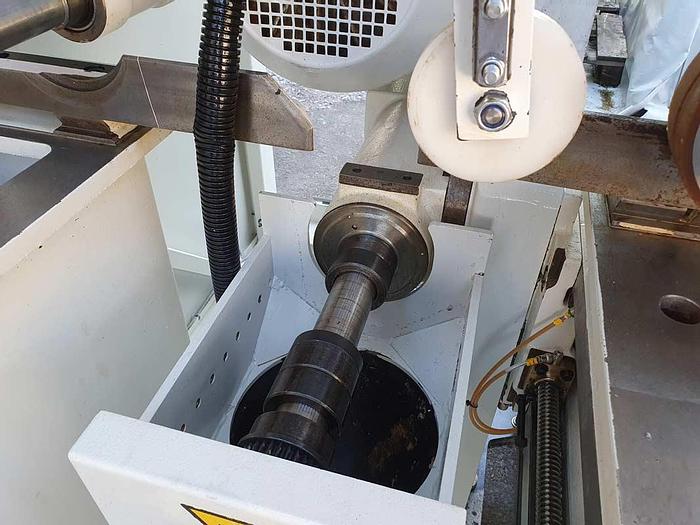

1. Bottom horizontal spindle ( 5,5 kW )

2. Right vertical spindle ( 5,5 kW )

3. left vertical spindle ( 5,5 kW )

4. Top horizontal spindle ( 5,5 kW )

5. Top horizontal spindle ( 5,5 kW )

6. Bottom horizontal spindle ( 5,5 kW )

7. Universal spindle ( 11 kW ) 360degree adjustment

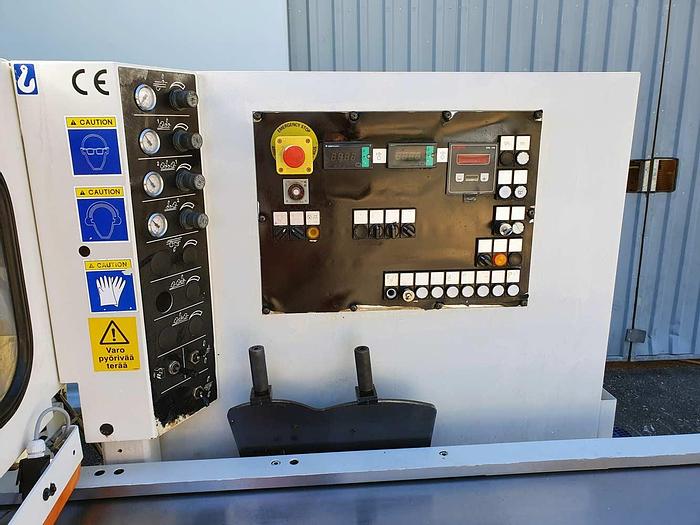

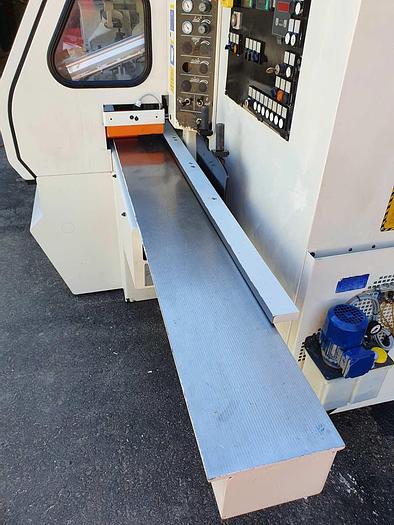

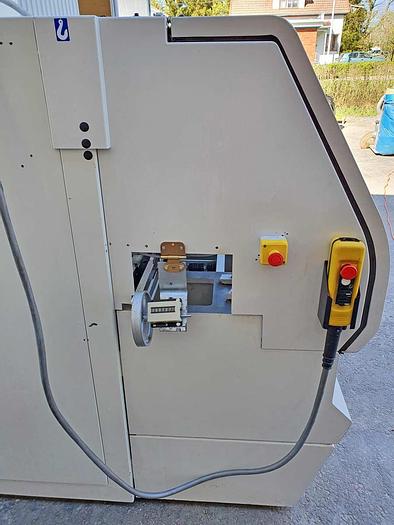

electronic digital readouts for working height and working width

L x W x H = 5500 x 1616 x 1655mm

5500 Kg

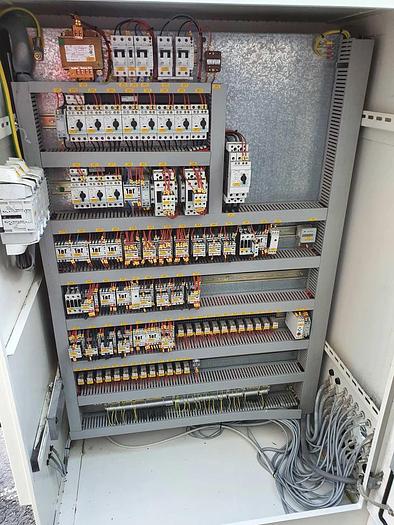

CE marked
